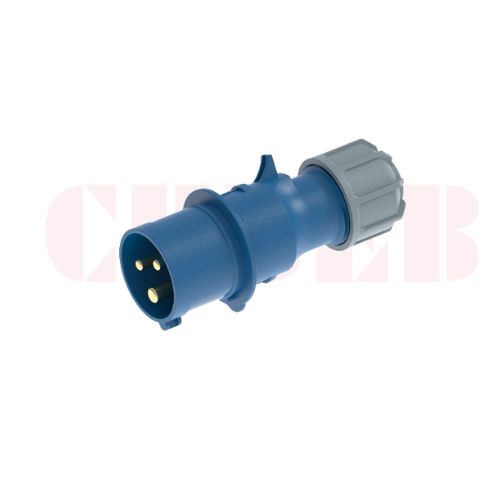

The Harmony Series 32A/3P-MXS3-A234-6 IP44 230V Industrial Plug is designed according to IEC 60309 standards and is suitable for 230V single-phase or three-wire systems (L, N, PE).
The blue voltage coding clearly identifies it as a 230V low-voltage connector, preventing mismatch with other voltage systems.
The A234-6 model features a robust structure, splash-proof outer shell, and a reinforced cable gland, providing IP44 protection for general industrial and outdoor environments.
Its flame-retardant PA66 housing and nickel-plated copper pins offer excellent durability, conductivity, and corrosion resistance.
Key Features
Rated Current: 32A
Rated Voltage: 230V (Blue-coded)
Poles: 3P (L, N, PE)
Compliant with IEC 60309
IP44 splash-proof & dust-proof protection
Durable flame-retardant PA66 housing
Nickel-plated copper pins for superior conductivity
Strong cable clamp for strain relief
Ergonomic Harmony grip design for easier handling
Typical Applications
General industrial equipment
Production line machinery
Food processing machines
Temporary power distribution
Construction sites
Commercial appliances
Rental and mobile equipment power systems
