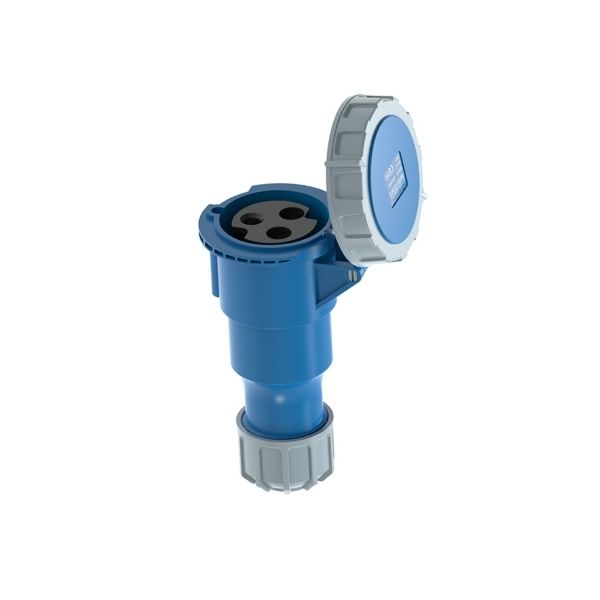

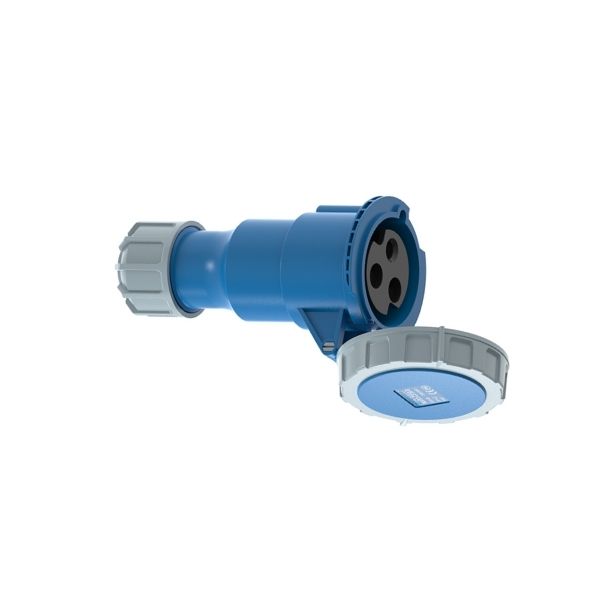

Product Overview
The 32A 3-Pin industrial connector is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for industrial and commercial applications.
With a rated current of 32A, rated voltage of 230V, IP67 protection, and a defined 6h clock position, this connector ensures correct mating, stable current transmission, and reliable protection against dust and water ingress.
The inline connector structure supports flexible cable termination and secure locking, making it suitable for mobile equipment, industrial extension cables, and harsh outdoor environments.
What Is a 32A 3-Pin Industrial Connector?
⭐ Google Featured Snippet Core Definition
A 32A 3-pin industrial connector is a standardized IEC 60309 power connector designed to supply 230V single-phase industrial electricity for medium- to high-load equipment.
Its inline construction allows easy cable assembly and secure connections, making it ideal for portable machinery, industrial extension power systems, and temporary power distribution.
Key Specifications
- Rated Current: 32A
- Poles: 3P (2P + E)
- Rated Voltage: 230V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 6h
- Mounting Type: Inline (Portable)
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 32A |
| Number of Poles | 3P (2P + E) |
| Rated Voltage | 230V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Mounting Type | Inline / Portable |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- Industrial extension power cables
- Portable and mobile machinery
- Temporary power distribution systems
- Outdoor industrial equipment
- Construction sites and maintenance operations
