Product Overview

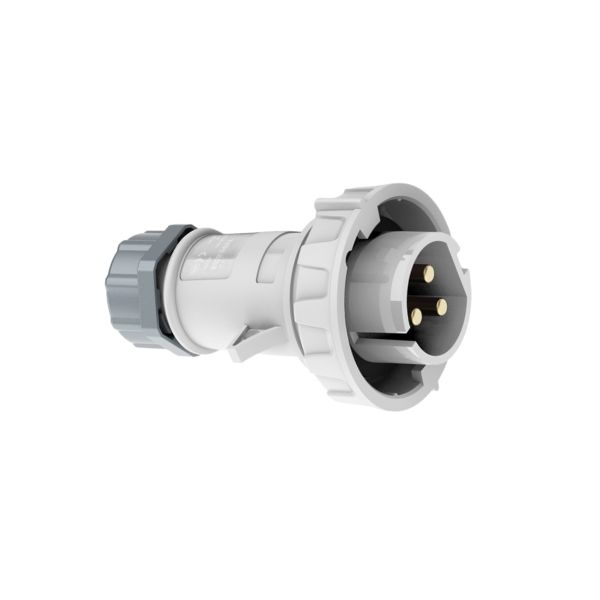

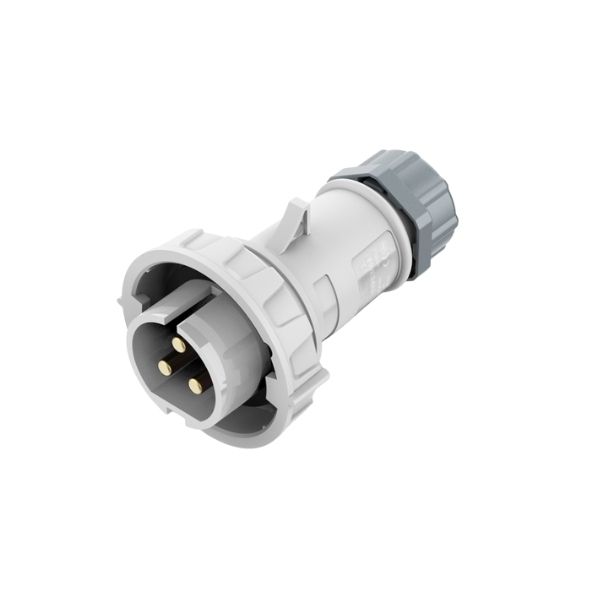

The CHBEB 32A low voltage industrial plug is designed for reliable power connections in extra-low voltage industrial systems.
Operating within a voltage range of 40–50V, it provides a balance between higher current capacity and enhanced electrical safety.
With an IP67 protection rating, the plug ensures stable performance in dusty, humid, and outdoor industrial environments.
What Is a 32A Low Voltage Industrial Plug?
A 32A low voltage industrial plug is an electrical connector designed for industrial power systems operating at reduced voltage levels, typically between 40V and 50V, to improve operational safety while supporting high current loads.
It is commonly used in industrial environments where both power reliability and electrical risk reduction are required.
Key Specifications
- Rated current: 32A
- Rated voltage: 40–50V
- Pin configuration: 3-Pin (3P)
- Clock position: 12H
- Protection rating: IP67
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-650a |
| Product Type | Low Voltage Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 40–50V |
| Poles | 3P |
| Clock Position | 12H |
| Protection Rating | IP67 |
| Pin Material | H59 Brass |
Applications
This CHBEB 32A low voltage industrial plug is suitable for industrial environments where higher current capacity is required under controlled low voltage conditions.
- Low voltage industrial power distribution systems
- Safety-focused electrical equipment
- Outdoor and harsh industrial environments
- Applications requiring IP67-rated connectors
- Mobile and temporary low voltage power connections
