Product Overview

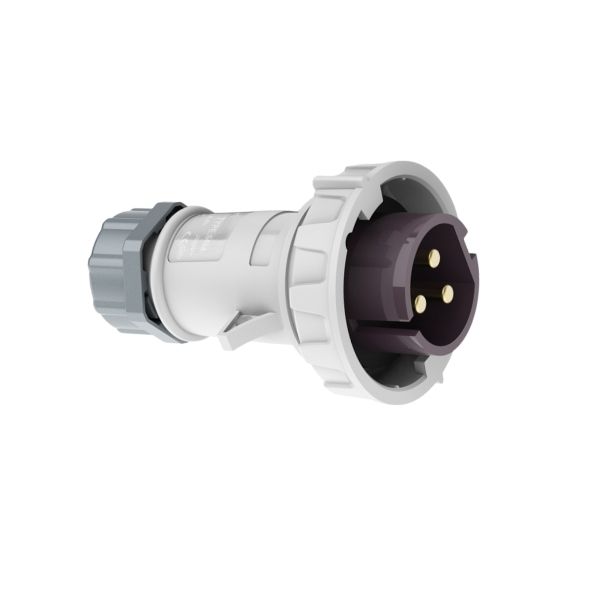

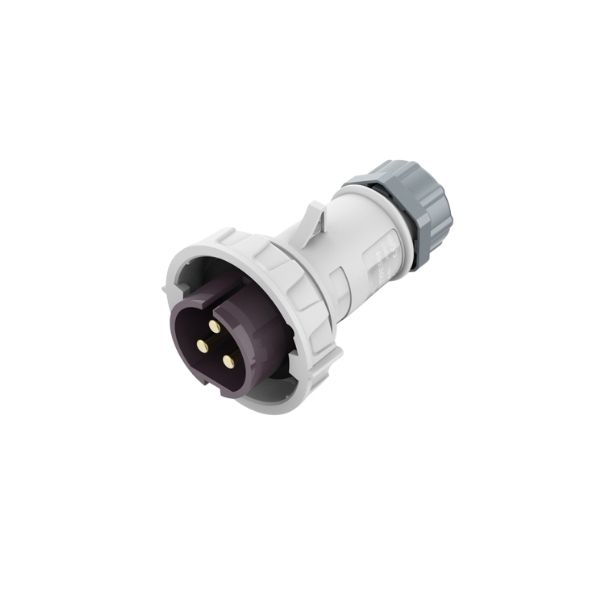

The CHBEB 32A low voltage industrial plug is designed for safe and reliable power connections in extra-low voltage industrial systems.
With a rated current of 32A and a voltage range of 20–25V, it is suitable for applications where electrical safety and stable performance are critical.
Its IP67 protection rating ensures resistance to dust and water immersion, making it reliable in harsh industrial environments.
What Is a 32A Low Voltage Industrial Plug?
A 32A low voltage industrial plug is an electrical connector designed for industrial power systems operating at extra-low voltages, typically between 20V and 25V, to enhance operational safety.
It allows high current transmission while significantly reducing electrical risk in safety-sensitive environments.
Key Specifications
- Rated current: 32A
- Rated voltage: 20–25V
- Pin configuration: 3-Pin (3P)
- Protection rating: IP67
- Application type: Low voltage industrial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-649a |
| Product Type | Low Voltage Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 20–25V |
| Poles | 3P |
| Protection Rating | IP67 |
| Pin Material | H59 Brass |
Applications
This CHBEB 32A low voltage industrial plug is suitable for industrial environments where enhanced electrical safety and environmental protection are required.
- Extra-low voltage industrial power systems
- Safety-critical electrical equipment
- Outdoor and wet working environments
- Industrial sites requiring IP67-rated connectors
- Temporary or mobile low voltage power connections
