Product Overview

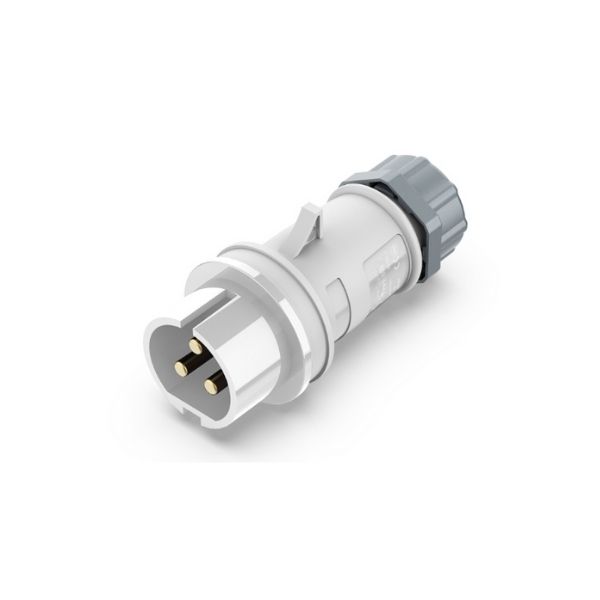

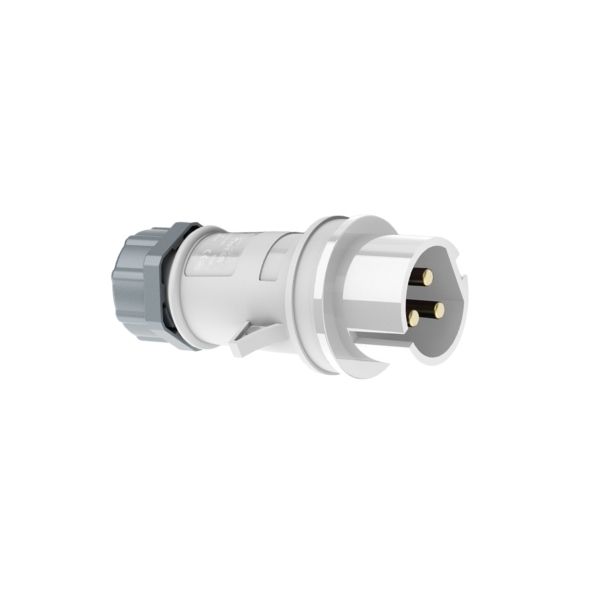

The CHBEB 32A 3-Pin Low Voltage Industrial Plug is manufactured in accordance with IEC 60309 standards for safe and reliable low-voltage power connections.
Designed for a rated current of 32A and an operating voltage range of 40–50V, this plug provides stable electrical performance while maintaining clear voltage separation for industrial safety.
With an IP44 protection rating, it is suitable for industrial environments where protection against splashing water is required.
What Is a 32A Low Voltage Industrial Plug?
A 32A low voltage industrial plug is a standardized IEC 60309 connector designed to operate within a 40–50V voltage range for industrial low-voltage power applications.
It ensures electrical safety by clearly separating low-voltage circuits from higher-voltage power systems.
Key Specifications
- Rated current: 32A
- Rated voltage: 40–50V
- Pin configuration: 3-Pin (3P)
- Protection rating: IP44
- Clock position: 12H
- Voltage type: Low voltage
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-650 |
| Product Type | Low Voltage Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 40–50V |
| Poles | 3P |
| Protection Rating | IP44 |
| Clock Position | 12H |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A low voltage industrial plug is commonly used in applications requiring controlled low-voltage power delivery with clear voltage identification.
- Low-voltage industrial control systems
- Maintenance and service power connections
- Special-purpose industrial equipment
- Testing and inspection power supplies
- Temporary low-voltage distribution systems
