Product Overview

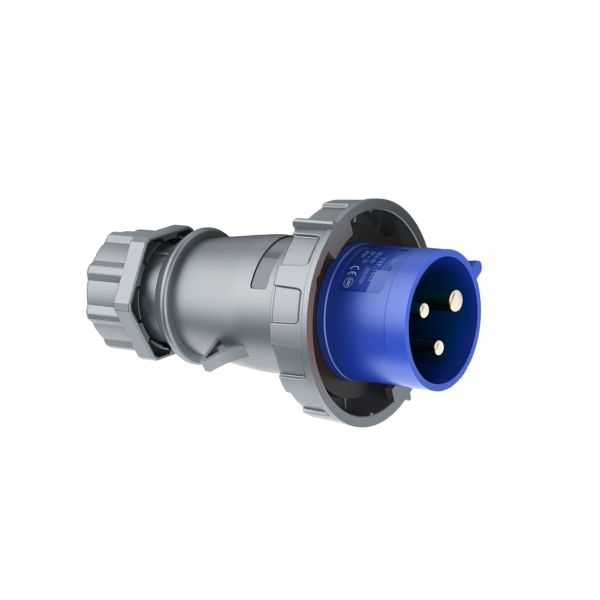

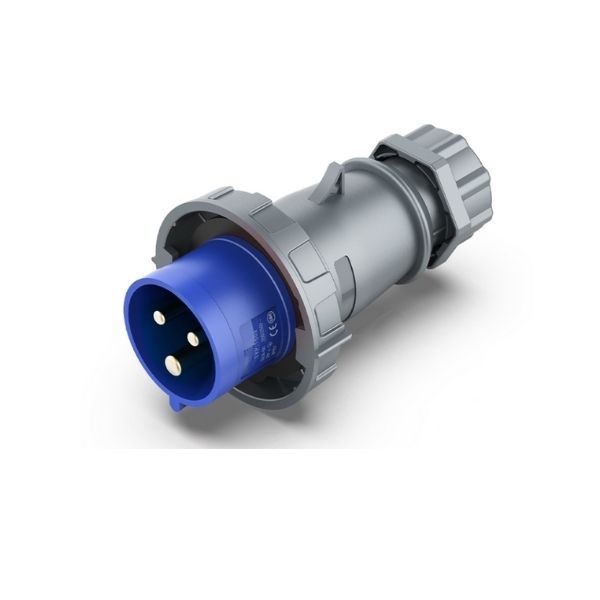

The CHBEB 32A 3-pin industrial plug is designed for reliable power connection in accordance with IEC 60309 standards.
Rated at 32A and 230V, this plug is suitable for single-phase or low-voltage three-wire industrial power systems where stable current transmission is required.
Featuring a split-type structure and IP67 protection rating, it provides enhanced sealing performance and is suitable for demanding industrial and outdoor environments.
What Is a 32A 230V 3-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 32A 230V 3-pin industrial plug is an IEC 60309 standardized connector designed for industrial power systems, providing secure and reliable electrical connections for medium-current applications.
It is commonly used in industrial equipment and temporary power distribution requiring higher durability and environmental protection.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (3P)
- Protection rating: IP67
- Structure: Split Type
- Clock position: 6H
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-160a |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP67 |
| Structure | Split Type |
| Clock Position | 6H |
| Pin Material | H59 Brass |
Applications
The CHBEB 32A 3-pin split-type industrial plug is designed for applications requiring higher current capacity, enhanced sealing, and flexible installation.
- Industrial machinery and equipment power connections
- Factory and workshop electrical distribution
- Outdoor and temporary power supply systems
- Construction sites and mobile equipment
- Environments requiring IP67 dust and water protection
