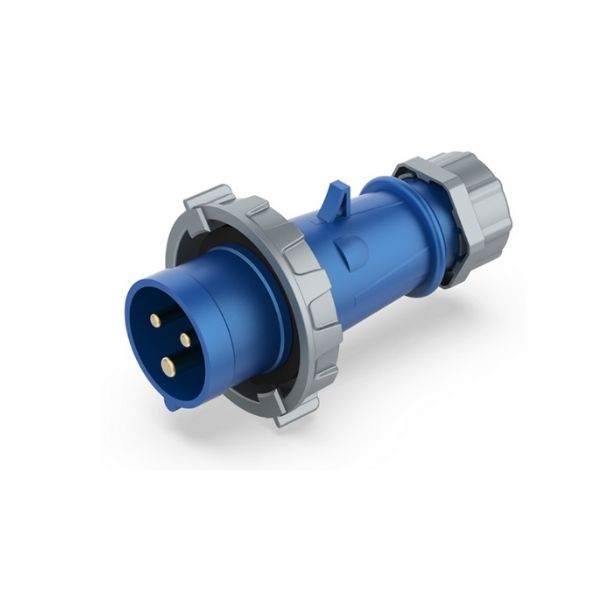

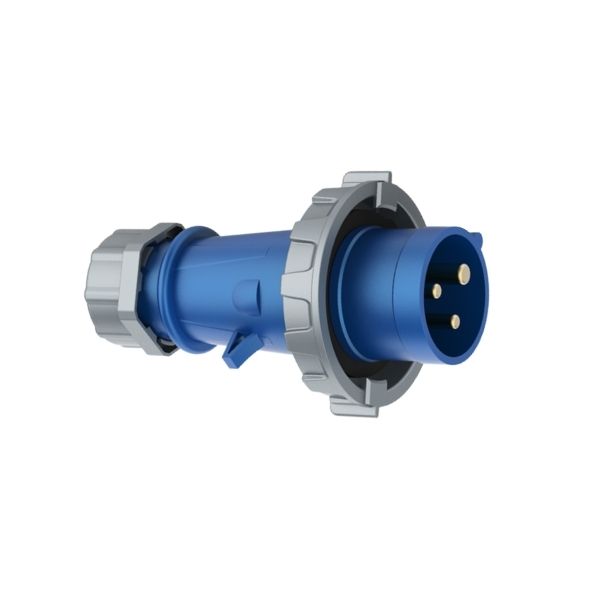

Product Overview
The CHBEB 32A 3-Pin Industrial Plug is designed in accordance with IEC 60309 standards to provide reliable and secure power connections for industrial applications.
Rated at 32A and 230V, this plug supports stable single-phase power transmission while ensuring high safety through standardized pin configuration and voltage identification.
With an IP67 protection rating, it is suitable for demanding environments where protection against dust and water immersion is required.
What Is a 32A 230V Industrial Plug?
A 32A 230V industrial plug is an IEC 60309 standardized connector designed for industrial power distribution, providing safe and reliable electrical connections for single-phase 230V systems.
It is commonly used in industrial environments requiring durable construction and enhanced protection against dust and water.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (3P)
- Protection rating: IP67
- Clock position: 6H
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-290 |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP67 |
| Clock Position | 6H |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A 230V industrial plug is designed for environments where reliable power connection and high ingress protection are essential.
- Industrial machinery and equipment power supply
- Outdoor electrical installations
- Construction sites and temporary power systems
- Factory workshops and production lines
- Harsh environments requiring IP67 protection
