Product Overview

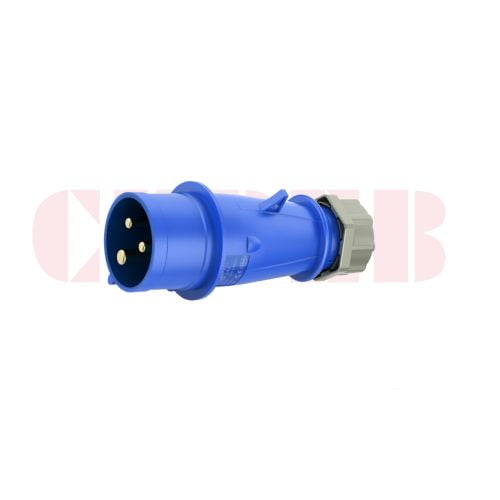

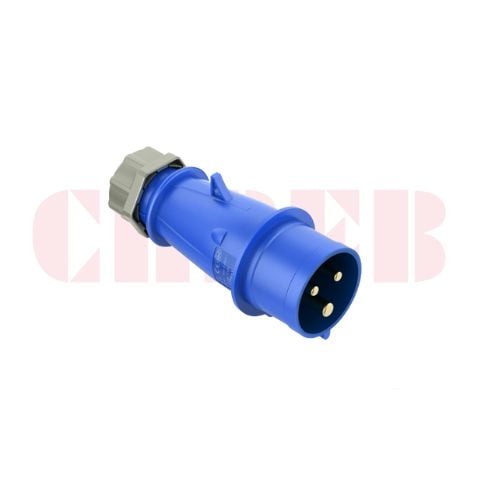

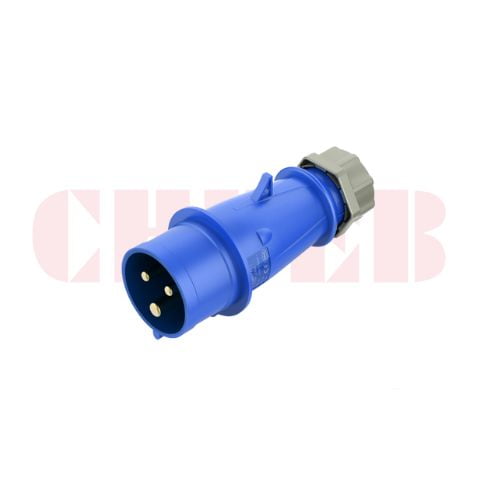

The CHBEB 32A 3-Pin Industrial Plug is designed in accordance with IEC 60309 standards to provide safe and reliable power connections for industrial and commercial applications.
With a rated current of 32A, rated voltage of 230V, IP44 protection, and a defined 6h clock position, this plug ensures correct orientation, stable electrical performance, and reliable protection against splashing water and solid objects.
It is suitable for applications where dependable power connections are required in indoor or semi-outdoor industrial environments.
What Is a 32A 3-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 32A 3-pin industrial plug is a standardized power connector defined by IEC 60309, designed to supply 230V power for industrial and commercial electrical equipment.
It features a 2P+E pin configuration with a specified 6h clock position, ensuring reliable grounding, correct alignment, and prevention of incorrect connections.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Standard: IEC 60309
- Application: Industrial and commercial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-260 |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
- Industrial machinery and equipment
- Workshops and factory power connections
- Temporary power systems
- Indoor and semi-outdoor installations
- Industrial power distribution equipment
