Product Overview

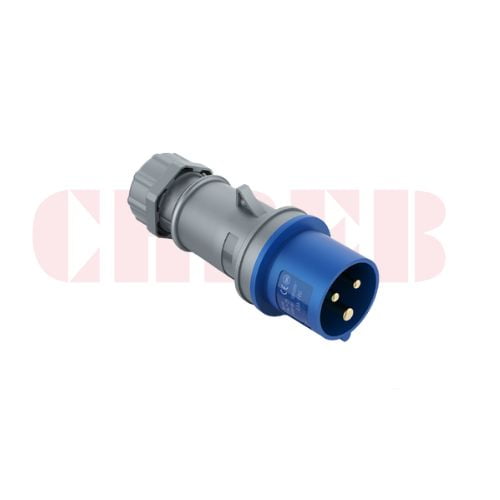

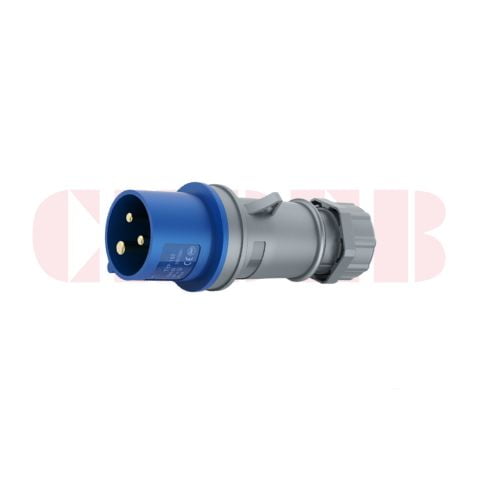

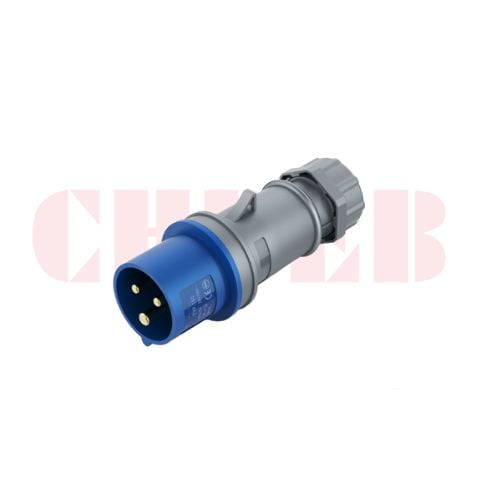

The CHBEB 32A 3-Pin Industrial Plug features a split-type housing design and is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for industrial and commercial applications.
With a rated current of 32A, rated voltage of 230V, IP44 protection, and a defined 6h clock position, this plug ensures correct connection, stable current transmission, and protection against splashing water.
The split-type structure allows flexible cable wiring and easy on-site assembly, making it suitable for mobile equipment and industrial extension power systems.
What Is a 32A Split-Type Industrial Plug?
A 32A split-type industrial plug is a standardized IEC 60309 power connector designed to supply 230V industrial electricity for medium- to high-load equipment.
Its separable housing structure allows flexible wiring and easy installation, making it ideal for industrial extension cables, mobile machinery, and temporary power connections.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (3P)
- Protection rating: IP44
- Design type: Split-type industrial plug
- Clock position: 6h
- Standard: IEC 60309
- Application: Industrial and commercial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-160 |
| Product Type | Industrial Plug (Split-Type) |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A split-type 3-pin industrial plug is widely used in applications requiring higher current capacity and flexible cable installation, including:
- Industrial extension cables and mobile power leads
- Portable industrial machinery and equipment
- Temporary power supply systems on construction sites
- Workshop and maintenance power connections
- Commercial and light industrial electrical installations
