Product Overview

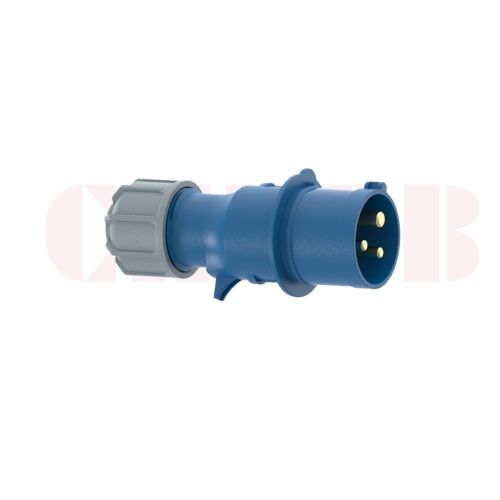

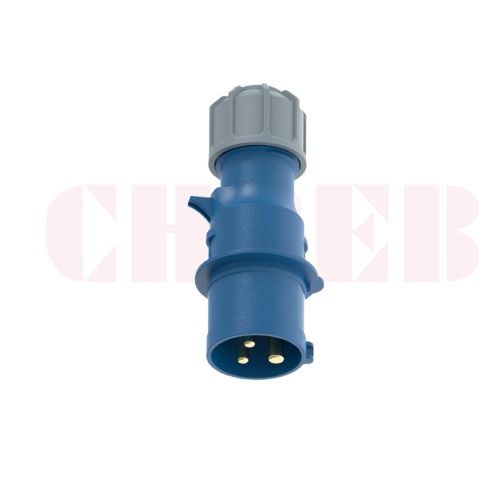

The CHBEB Harmony Series 32A industrial plug is designed for stable single-phase and low-voltage three-phase power connections in industrial and commercial environments.
With a 3-pin configuration and a rated voltage of 230V, this plug provides reliable current transmission for medium-power equipment and portable industrial devices.
The IP44 protection rating offers protection against solid objects and water splashes, making it suitable for controlled indoor and semi-outdoor applications.
What Is a 32A 3-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 32A 3-pin industrial plug is an electrical connector rated for 230 volts, designed with live, neutral, and earth conductors to supply safe and reliable power for industrial equipment.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (L+N+E)
- Clock position: 6H
- Protection rating: IP44
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-A234-6 |
| Series | Harmony Series |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Pin Material | Brass H59 |
Applications
This 32A 3-pin industrial plug is suitable for medium-power electrical equipment that requires stable current delivery in controlled environments.
- Industrial machinery and workshop equipment
- Portable power distribution units
- Commercial electrical appliances
- Indoor factories and warehouses
- Semi-outdoor installations with splash protection
