Product Overview

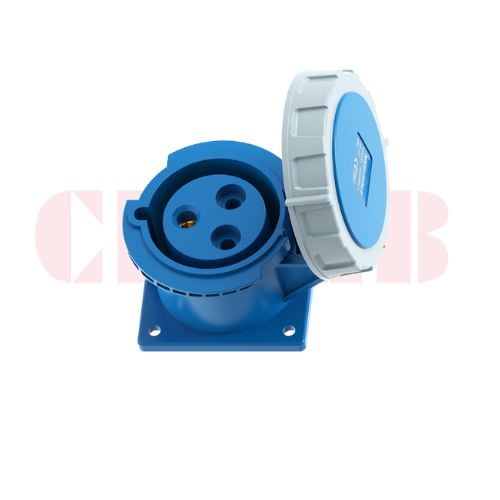

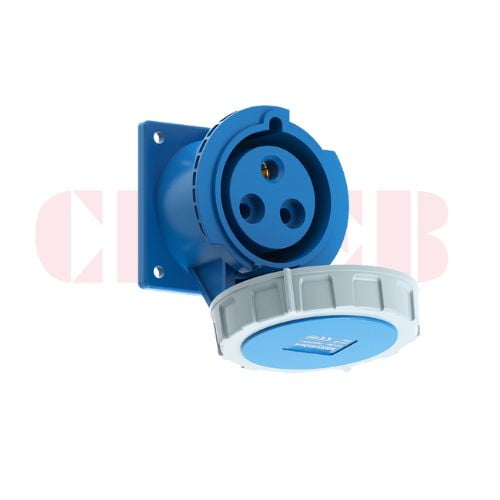

The CHBEB MX Series 32A 3-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards and engineered for panel-mounted industrial power connections in harsh environments.
With a rated current of 32A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection rating, this socket provides reliable power transmission with full protection against dust and water immersion. The blue color coding and 6h clock position ensure correct voltage identification and safe operation.

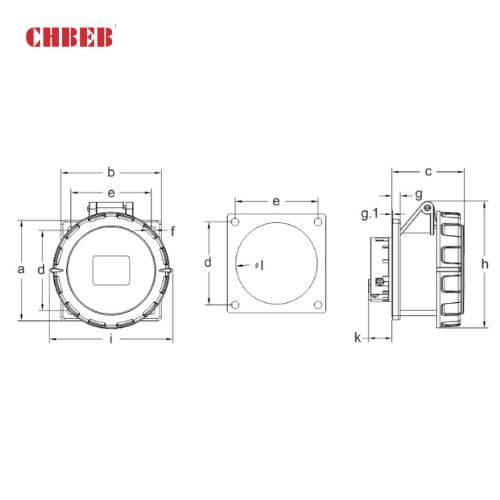

The flanged mounting structure allows secure installation on control panels, enclosures, and industrial equipment, making it ideal for fixed electrical installations.
What Is a 32A 3-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 3-pin flanged industrial socket is an IEC 60309 standardized single-phase power outlet with earth, designed for panel mounting and used to safely distribute 230V industrial power.
It ensures stable current transmission, reliable grounding, and safe operation in demanding industrial environments.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B236-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A IP67 3-pin flanged industrial socket is widely used in:
- Single-phase industrial equipment
- Construction site power distribution
- Outdoor industrial installations
- Control panels and electrical enclosures
- Factories and workshops with high moisture exposure
FAQ
What does a 3-pin (2P+E) socket mean?
A 3-pin socket includes two live conductors and an earth pin, suitable for single-phase 230V industrial applications.
Is IP67 suitable for outdoor use?
Yes. IP67 protection provides complete dust protection and resistance to temporary water immersion, making it ideal for outdoor and harsh environments.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 32A 3-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Durable structure for fixed industrial installations
- OEM and customization services available
