Product Overview

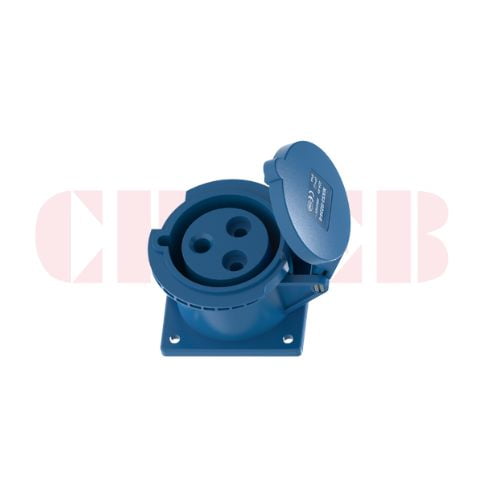

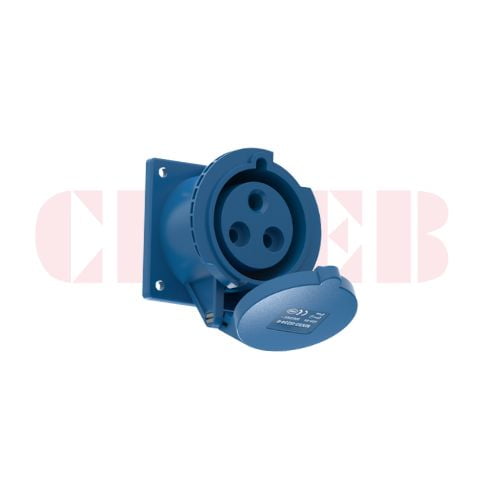

The CHBEB MX Series 32A 3-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards and engineered for secure panel-mounted industrial power connections.
With a rated current of 32A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP44 protection rating, this socket provides reliable single-phase power distribution with protection against solid objects and water splashes. The blue color coding and 6h clock position ensure correct voltage identification and safe operation.
Its flanged mounting structure allows firm installation on panels, enclosures, and machinery, making it suitable for fixed industrial electrical systems.
What Is a 32A 3-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 3-pin flanged industrial socket is an IEC 60309 standardized single-phase power outlet with earth, designed for panel mounting and used to safely distribute 230V industrial power in fixed installations.
It ensures stable current transmission, reliable grounding, and long-term safety in industrial environments.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B234-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A IP44 3-pin flanged industrial socket is widely used in:
- Single-phase industrial machinery
- Electrical control panels
- Factories and workshops
- Industrial equipment power interfaces
- Fixed indoor and semi-outdoor installations
FAQ
What applications are suitable for a 32A 3-pin socket?
A 32A 3-pin socket is commonly used for higher-power single-phase equipment that requires stable current and secure grounding.
Is IP44 protection sufficient for industrial environments?
Yes. IP44 protection is suitable for indoor and light outdoor industrial environments where water splashes and solid objects may be present.
Is this socket compatible with IEC 60309 plugs?
Yes. This product fully complies with IEC 60309 standards and is compatible with all corresponding 32A 3-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Durable design for long-term industrial use
- OEM and customization services available
