Product Overview

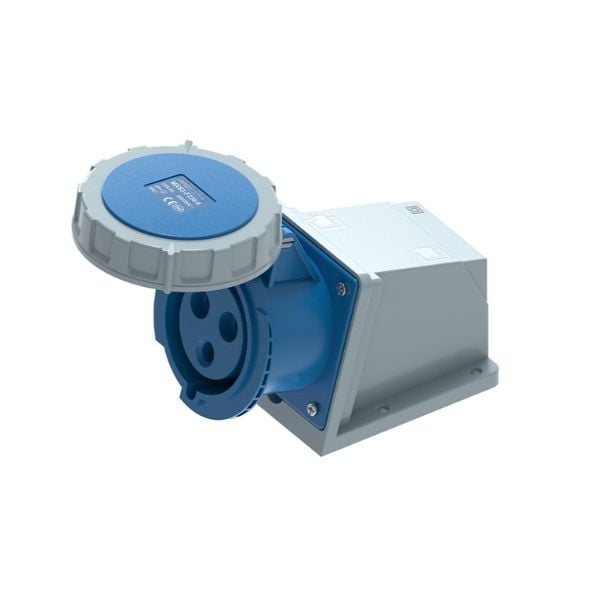

The CHBEB MX Series 32A 3-Pin Enclosed Industrial Socket is designed in accordance with IEC 60309 standards and integrated into a sealed protective enclosure, providing safe and reliable power connections for industrial and commercial applications.
With a rated current of 32A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection, this enclosed industrial socket offers excellent resistance to dust, moisture, and water immersion. The blue color coding and 6h clock position clearly identify 230V power systems and prevent incorrect connections.
The MX Series IP67 enclosure makes this socket ideal for harsh environments where waterproof and dustproof performance is required.
What Is a 32A 3-Pin Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 3-pin enclosed industrial socket is an IEC 60309 standardized power outlet with earth connection, housed in a waterproof enclosure to safely deliver 230V industrial power in demanding environments.
It is widely used where high current, environmental protection, and reliable electrical performance are required.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F236-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade waterproof insulating enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A IP67 enclosed industrial socket is commonly used in:
- Outdoor industrial equipment
- Construction sites and temporary power systems
- Factories and workshops with harsh environments
- Power distribution boxes
- Heavy-duty industrial applications
FAQ
What is the benefit of IP67 protection?
IP67 protection ensures complete dust resistance and protection against temporary water immersion, making it suitable for demanding outdoor and industrial environments.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with all matching 32A 3-pin IEC 60309 industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX enclosed socket range from 16A to 125A
- IP44 and IP67 protection options available
- Strict IEC 60309 compliance
- Durable waterproof enclosure design
- OEM and customization services supported
