Product Overview

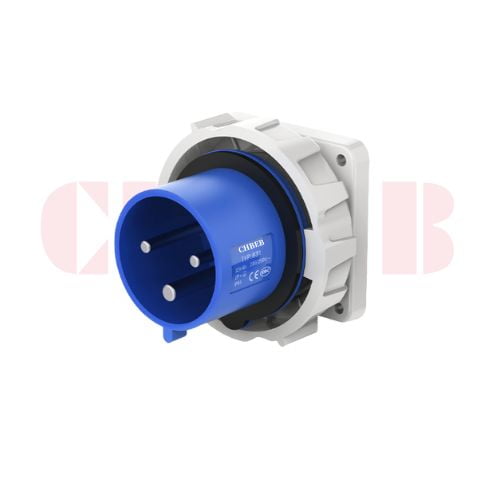

The CHBEB 32A 3-Pin Appliance Inlet is designed in compliance with IEC 60309 standards, providing a durable and waterproof fixed power input solution for single-phase industrial equipment.
With a rated current of 32A, rated voltage of 230V, 3-pin configuration (2P+E), and IP67 protection, this appliance inlet ensures safe and reliable power connection in harsh and wet environments. The blue color coding and 6h clock position guarantee correct voltage identification and prevent mismatched connections.
Its panel-mounted structure allows permanent installation on equipment housings, control cabinets, and power distribution panels.
What Is a 32A 3-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 32A 3-pin appliance inlet is an IEC 60309 standardized male connector mounted on electrical equipment, designed to receive 230V single-phase power safely and reliably.
It is commonly used in industrial and commercial applications requiring fixed, waterproof power input.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-831 |
| Product Type | Appliance Inlet |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Single-phase industrial equipment
- Outdoor power supply systems
- Electrical control cabinets
- Construction sites and workshops
- Wet or dusty industrial environments
FAQ
What is the advantage of IP67 protection?
IP67 protection ensures complete dust resistance and protection against temporary water immersion, making it ideal for harsh industrial environments.
Is this inlet compatible with standard IEC 60309 32A blue plugs?
Yes. This appliance inlet is fully compliant with IEC 60309 standards and compatible with all standard 32A 230V blue industrial plugs.
Why Choose CHBEB?
- Full IEC 60309 appliance inlet range from 16A to 125A
- IP44 and IP67 protection options available
- High-quality H59 brass contact pins
- Stable supply from China source factory
- OEM and customization services supported
