Product Overview

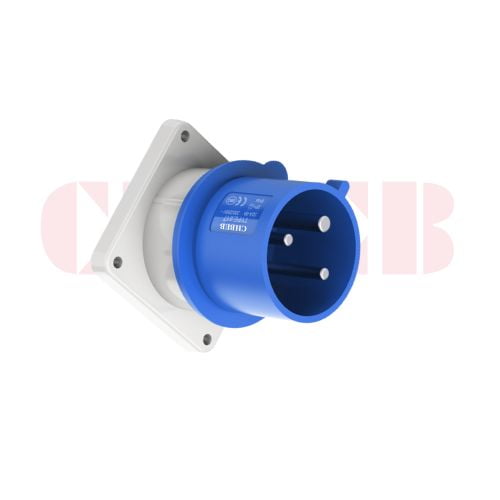

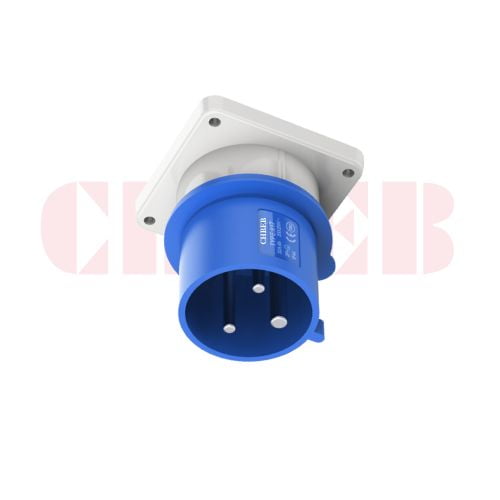

The CHBEB 32A 3-Pin Appliance Inlet is designed and manufactured in accordance with IEC 60309 standards, providing a reliable fixed power input solution for industrial and commercial equipment.
With a rated current of 32A, rated voltage of 230V, 3-pin configuration (2P+E), and IP44 protection, this appliance inlet ensures safe and stable power connection in indoor and light industrial environments. The blue color coding and 6h clock position guarantee correct voltage identification and prevent misconnection.

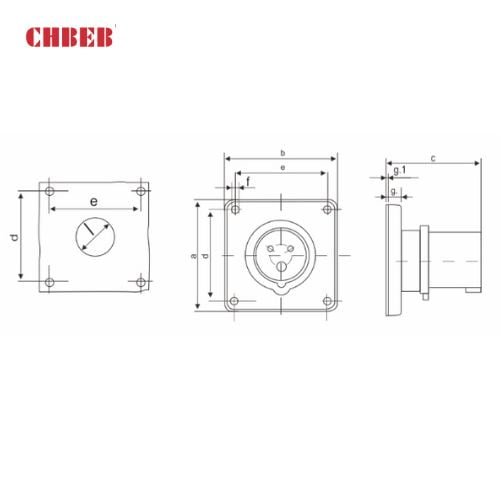

Its panel-mounted structure allows permanent installation on electrical equipment, control panels, and power distribution units.
What Is a 32A 3-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 32A 3-pin appliance inlet is an IEC 60309 standardized male connector installed on electrical equipment, designed to safely receive 230V single-phase power with earth connection.
It is commonly used as a fixed power inlet for industrial machinery and electrical systems requiring higher current capacity.
Key Specifications
- Rated current: 32A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-817 |
| Product Type | Appliance Inlet |
| Rated Current | 32A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Industrial machinery and equipment
- Electrical control panels
- Power distribution systems
- Workshops and factories
- Indoor and light industrial environments
FAQ
What does IP44 protection mean?
IP44 provides protection against solid objects larger than 1mm and water splashes from any direction, making it suitable for indoor and light-duty industrial use.
Is this inlet compatible with IEC 60309 32A blue plugs?
Yes. This appliance inlet is fully compatible with IEC 60309 32A 230V blue industrial plugs.
What is the benefit of a 32A appliance inlet?
A 32A appliance inlet allows higher current capacity compared to 16A models, supporting more powerful industrial equipment.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet range
- Current ratings from 16A to 125A
- IP44 and IP67 protection options
- High-quality H59 brass contacts
- OEM and customization services available
