Product Overview

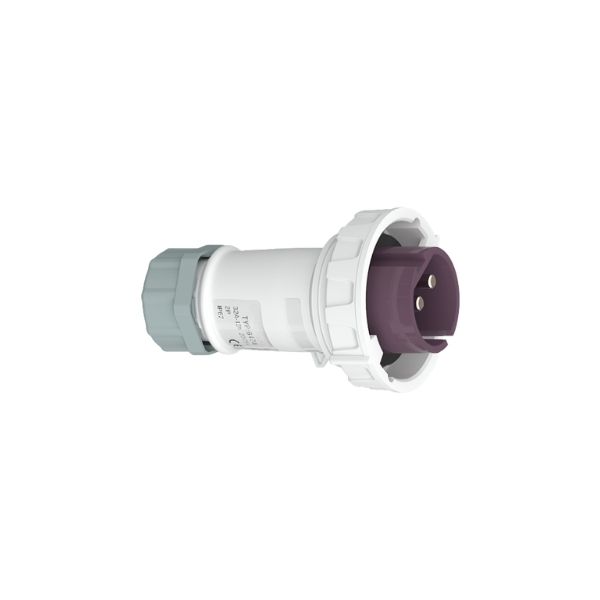

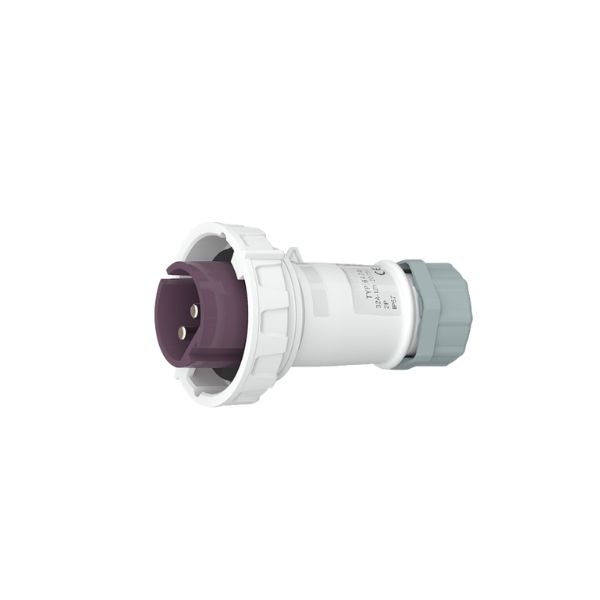

The CHBEB 32A low voltage industrial plug is designed for safe and reliable power connections in extra-low voltage industrial applications.
With a rated current of 32A and a rated voltage range of 20–25V, this plug is suitable for low-voltage power systems where electrical safety is critical.
Its IP67 protection rating ensures excellent resistance against dust ingress and water immersion, making it suitable for harsh industrial and outdoor environments.
What Is a 32A Low Voltage Industrial Plug?
A 32A low voltage industrial plug is a standardized electrical connector designed for extra-low voltage power transmission, typically between 20V and 25V, providing enhanced safety in industrial environments.
It is commonly used in applications where reduced voltage is required to minimize electrical risk while maintaining high current capacity.
Key Specifications
- Rated current: 32A
- Rated voltage: 20–25V
- Pin configuration: 2-Pin (2P)
- Protection rating: IP67
- Application type: Low voltage industrial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-642a |
| Product Type | Low Voltage Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 20–25V |
| Poles | 2P |
| Protection Rating | IP67 |
| Pin Material | H59 Brass |
Applications
The CHBEB 32A low voltage industrial plug is widely used in applications where electrical safety and environmental protection are critical.
- Low voltage industrial power systems
- Construction sites requiring extra-low voltage safety standards
- Temporary power supply for maintenance and service equipment
- Outdoor and wet environments requiring IP67 protection
- Industrial equipment operating under low voltage conditions
