Product Overview

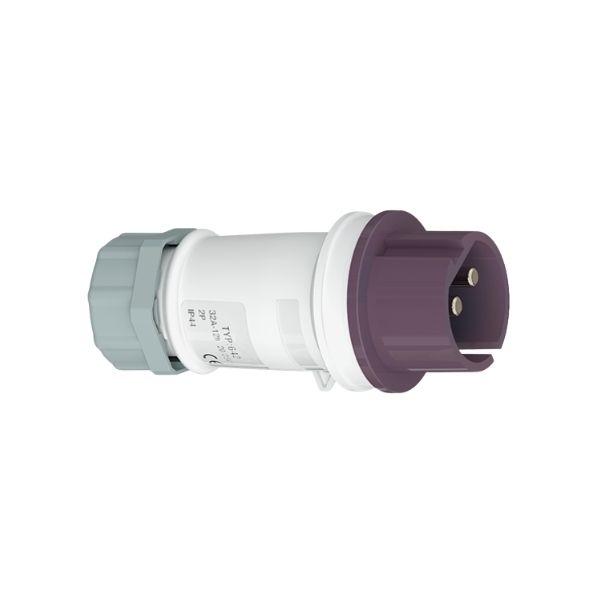

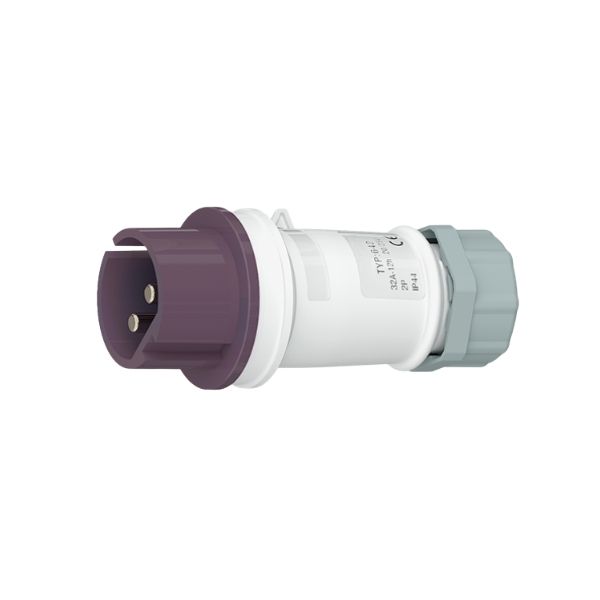

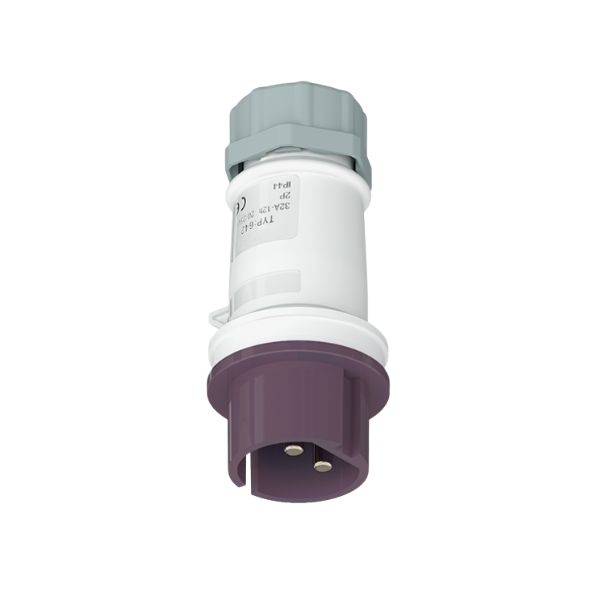

The CHBEB 32A 2-Pin Low Voltage Industrial Plug is manufactured in accordance with IEC 60309 standards and is designed for safe and reliable low-voltage industrial power connections.
With a rated current of 32A, operating voltage range of 20–25V, and IP44 protection, this plug provides stable electrical performance and protection against splashing water in industrial environments.
It is suitable for low-voltage power systems where safety, clear voltage separation, and reliable connections are required.
What Is a 32A Low Voltage Industrial Plug?
A 32A low voltage industrial plug is a standardized IEC 60309 power connector designed to operate within a 20–25V voltage range for industrial low-voltage applications.
Its low operating voltage reduces electrical risk and ensures safe power supply for specialized equipment and controlled industrial systems.
Key Specifications
- Rated current: 32A
- Rated voltage: 20–25V
- Pin configuration: 2-Pin (2P)
- Protection rating: IP44
- Voltage type: Low voltage
- Standard: IEC 60309
- Application: Industrial low-voltage power connection

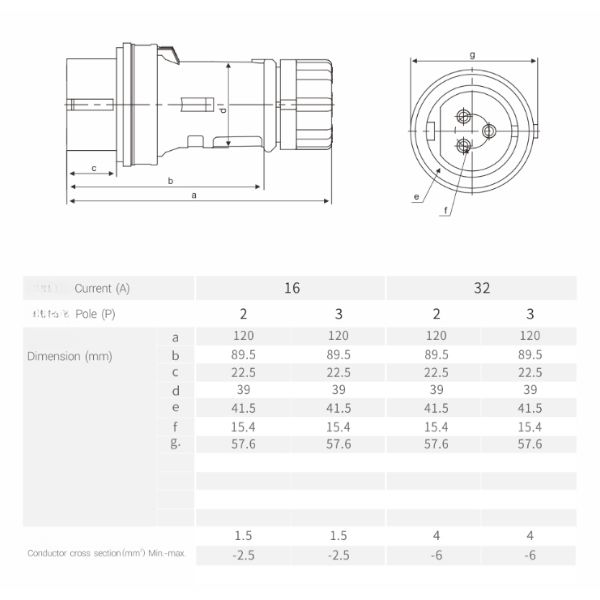

Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-642 |
| Product Type | Low Voltage Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 20–25V |
| Poles | 2P |
| Protection Rating | IP44 |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A low voltage industrial plug is commonly used in applications where reduced voltage is required for safety and system control, including:
- Low-voltage industrial control systems
- Maintenance and inspection power supplies
- Special-purpose industrial equipment
- Test benches and controlled power environments
- Temporary low-voltage power connections
