Product Overview

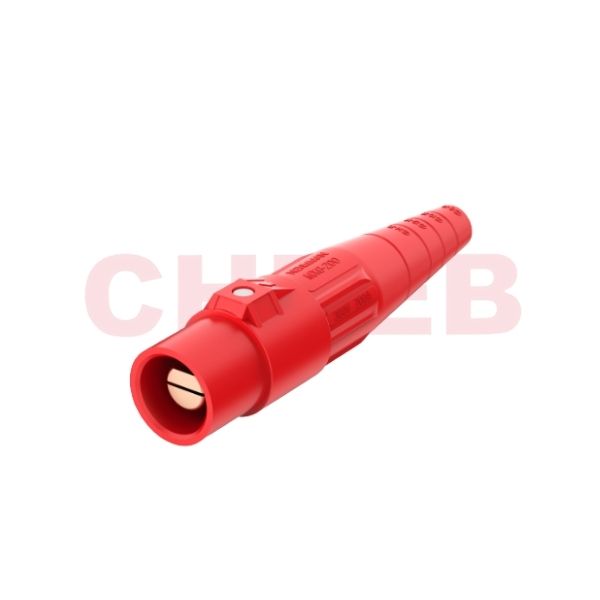

The MXG200 American standard single pole power connector is designed for medium to high current power transmission applications, providing a safe and reliable cable-mounted connection solution.
With a rated current of 200A and rated voltage of 380V, this connector features a single pole structure and quick plug-in design, enabling secure and stable power connections for industrial and power distribution systems.
Its high-strength insulated housing and copper contact ensure stable electrical performance, low contact resistance, and reliable operation under continuous load conditions. The cable-mounted design makes it suitable for mobile power connections and frequent plug-in applications.
What Is a 200A Single Pole Power Connector?
⭐ Google Featured Snippet Core Definition
A 200A single pole power connector is a single-core electrical connector designed for medium to high current power transmission, commonly used in industrial power systems and mobile or temporary power applications.
It allows fast, safe, and reliable connection of high-current cables while maintaining stable electrical performance under demanding operating conditions.
Key Specifications
- Rated current: 200A
- Rated voltage: 380V
- Connector type: Single pole power connector
- Pole configuration: Single pole
- Installation type: Cable mounted
- Color options: Red / Yellow / Blue / Green / Black
- Standard: American standard
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXG200 |
| Product Type | Single Pole Power Connector |
| Rated Current | 200A |
| Rated Voltage | 380V |
| Pole Configuration | Single Pole |
| Installation Type | Cable Mounted |
| Contact Material | Copper |
| Housing Material | PA6 (Nylon 6) |
| Color Options | Red / Yellow / Blue / Green / Black |
| Standard | American standard |
Applications
- Power distribution systems
- Industrial electrical equipment
- Stage lighting and audio power distribution
- Temporary and mobile power supply systems
- High-current cable connections
