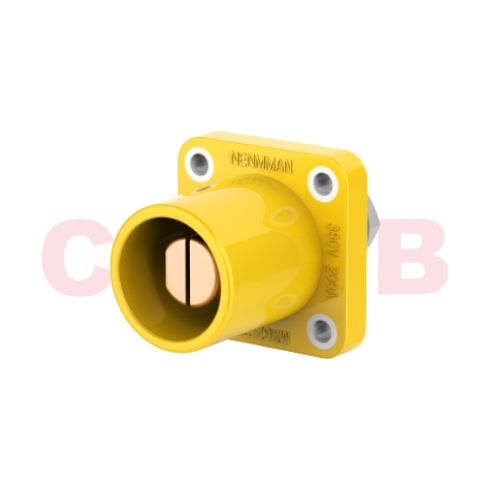

200A Panel Mount Single Pole Power Connector, 380V, MXGZ200 American Standard Panel Connector

200A Panel Mount Single Pole Power Connector, 380V, MXGZ200 American Standard Panel Connector

NO • 380V • Single-core connector • 200A Panel Mount Single Pole Connector (MXGZ200, 380V)

Technical Specifications

Model: MXGZ200
Series: Linghang
Short Name: 200A Panel Mount Single Pole Connector (MXGZ200, 380V)
Rated Voltage: 380V
Poles: Single-core connector
Protection IP: NO
Hour Position: NO
Color: Yellow
Mounting Type: Panel Mounted / Fixed Installation
Gender: Single-core connector
Housing Material: PA6
Conductor Material: Brass

Order Information

MOQ 300 Units

Lead Time Est. 8-9 days

Packaging

Standard Carton Color Box Pallet

Factory Direct

IEC 60309 Certified

Product Details

Product Overview

The MXGZ200 American standard panel mount single pole power connector is designed for medium to high current power distribution applications, providing a stable and secure fixed panel connection solution.

With a rated current of 200A and rated voltage of 380V, this connector features a single pole structure and panel-mounted installation design, enabling reliable power transmission between cables and electrical equipment.

Its high-strength insulated housing and copper contact ensure stable electrical performance, low contact resistance, and safe operation under continuous load conditions. The panel-mounted structure makes it suitable for power distribution cabinets and industrial electrical systems.

What Is a 200A Panel Mount Single Pole Power Connector?

⭐ Google Featured Snippet Core Definition

A 200A panel mount single pole power connector is a single-core electrical connector designed to be fixed onto panels or enclosures, providing a reliable interface for medium to high current power transmission.

It is widely used in power distribution systems and industrial equipment where stable panel-mounted power connections are required.

Key Specifications

Rated current: 200A
Rated voltage: 380V
Connector type: Panel mount single pole connector
Pole configuration: Single pole
Installation type: Panel mounted / fixed installation
Color options: Red / Yellow / Blue / Green / Black
Standard: American standard

Technical Parameters

Item	Specification
Model	MXGZ200
Product Type	Panel Mount Single Pole Power Connector
Rated Current	200A
Rated Voltage	380V
Pole Configuration	Single Pole
Installation Type	Panel Mounted
Contact Material	Copper
Housing Material	PA6 (Nylon 6)
Color Options	Red / Yellow / Blue / Green / Black
Standard	American standard

Applications

Power distribution cabinets
Industrial electrical equipment
Energy storage and power systems
Stage lighting and audio power distribution
Panel-mounted power connections

Factory Production & Quality Control

See our real production processes and rigorous quality inspection procedures. From raw materials to finished products, every step follows strict industrial standards.

Production Process

Watch our complete manufacturing workflow from injection molding to final assembly. Advanced automation ensures consistent quality and efficiency.

IEC Standard Quality Control

Quality Inspection

Our comprehensive testing procedures include electrical safety, mechanical durability, and environmental resistance tests before shipment.

IP67 Testing CE Certified

Transparent Manufacturing Process • B2B Factory Tours Available

Quality Testing Lab

Quality Assurance

Every connector undergoes mechanical endurance tests, contact resistance tests, dielectric withstand tests, and waterproof verification. Certified by IEC 60309 and manufactured under ISO systems.

IEC 60309

International Standard

ISO 9001

Quality Management

IP44/ IP67

Protection Rating

100%

Electrical Safety Test

Internal Structure & Engineering Details

Designed for durability, safety, and long-term industrial use

Anti-Loosening Lock and IP67 Sealing Design

IP67 Rated

🔧

Anti-Loosening Lock & IP67 Sealing Design

The connector features a reinforced anti-loosening locking mechanism combined with a waterproof sealing ring. When fully tightened, it ensures a secure connection and achieves up to IP67 protection, preventing accidental disconnection and water ingress in harsh environments.

🔩

Solid Brass Contacts with Nickel Plating

High-conductivity solid brass pins with nickel plating provide excellent electrical performance, corrosion resistance, and long service life. This design reduces contact resistance and minimizes heat buildup under continuous load.

Nickel Plated

Clear Wiring Structure for Fast Installation

16A Models

1-4 mm² cables

32A Models

2.5-6 mm² cables

🔌

Clear Wiring Structure for Fast & Safe Installation

The internal terminal layout allows quick and accurate wiring. Screw-clamp terminals ensure strong cable fixation and reliable electrical contact.

16A models support 1-4 mm² cables

32A models support 2.5-6 mm² cables

🧭

Guided Slot Design to Prevent Wrong Insertion

The socket is designed with a precise guiding slot system, perfectly matching the plug's orientation. This prevents incorrect insertion and ensures safe, correct phase alignment every time.

Safety First

High-Strength Nylon Housing and Rubber Gasket

Industrial Grade

🧱

High-Strength Nylon Housing & Rubber Gasket

The housing is made from premium industrial-grade nylon, offering excellent impact resistance, flame retardancy, and durability. An integrated rubber sealing gasket improves waterproof performance and ensures a tight, stable installation on panels or enclosures.
