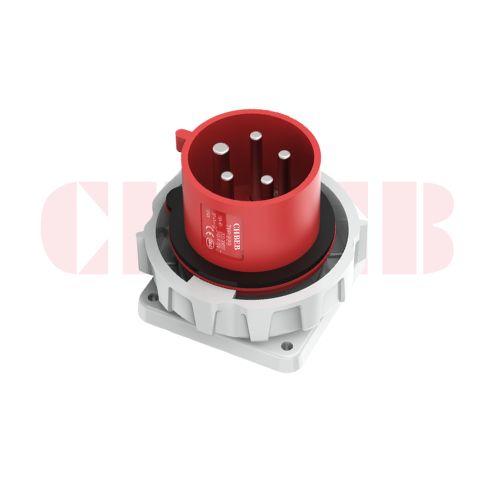

Panel Mount Inlet 16A/5P-829 IP67 400V is designed for three-phase 400V power systems (3P + N + PE) and follows IEC 60309 red voltage coding, ensuring safe and correct power connections across industrial applications.
This model features a panel-mounted inlet design, allowing secure installation on equipment enclosures, control panels, and distribution boards.
The housing is manufactured from high-strength flame-retardant PA66, providing excellent resistance to impact, heat, corrosion, and long-term aging.
With an IP67 protection rating, the inlet is fully dustproof and protected against temporary immersion, making it ideal for demanding indoor and outdoor industrial environments.
⭐ Key Features
Rated Current: 16A
Rated Voltage: 400V (IEC Red Coding)
Poles: 5P (3P + Neutral + Earth)
Mounting Type: Panel Mount Inlet
Protection Rating: IP67
Durable flame-retardant PA66 housing
Nickel-plated copper contacts for stable conductivity
Sealed structure for long-term reliability
Fully compliant with IEC 60309 standard
⭐ Typical Applications
Three-phase five-wire industrial equipment
Control panels and distribution boxes
Outdoor machinery and power systems
Pumps, motors, and ventilation equipment
Food processing and wash-down areas
Warehouses and industrial power distribution
