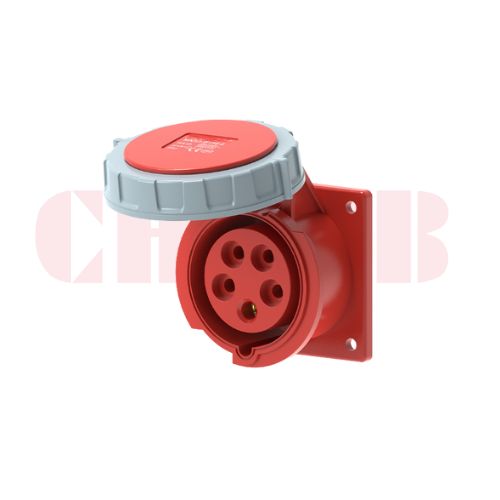

Harmony Series Panel Mount Socket 16A/5P-MXS3-B156-6 IP67 400V is designed for three-phase five-wire power systems (3P + Neutral + Earth) and complies with IEC 60309 red voltage coding, ensuring safe and correct connections in 400V industrial applications.
This panel-mounted socket is intended for fixed installation on equipment enclosures, control panels, and distribution cabinets, providing a standardized and reliable three-phase power interface on the equipment side.
The housing is made of high-strength flame-retardant PA66, offering excellent resistance to impact, heat, corrosion, and aging, even in demanding industrial environments.
With an IP67 protection rating, the socket is fully protected against dust and temporary water immersion, making it suitable for outdoor installations, wet areas, and wash-down environments.
A threaded sealing protective cover protects the contacts when not in use, keeping them clean and dry while extending service life.
⭐ Key Features
Rated Current: 16A
Rated Voltage: 400V (IEC Red Coding)
Poles: 5P (3P + Neutral + Earth)
Mounting Type: Panel Mount Socket
Protection Rating: IP67 (dust-tight & waterproof)
Durable flame-retardant PA66 housing
High-conductivity copper alloy contacts
Threaded sealing protective cover for enhanced protection
Compatible with Harmony Series 16A five-pole industrial plugs
⭐ Typical Applications
Three-phase five-wire industrial equipment
Industrial machinery and automation systems
Construction sites and temporary power distribution
Wash-down and high-humidity environments
Control panels and distribution cabinets
400V three-phase equipment requiring neutral conductor
