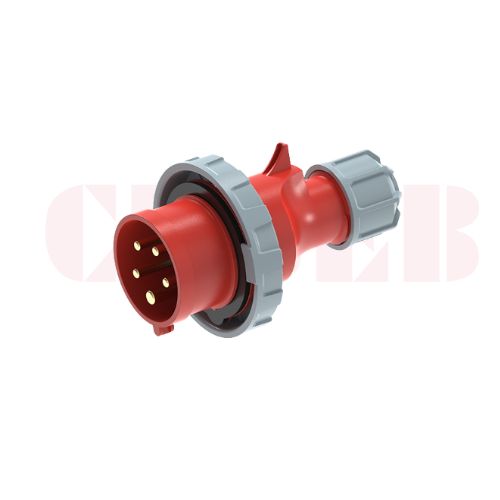

The Harmony Series 16A/5P-MXS3-A156-6 IP67 400V Industrial Plug is designed according to IEC 60309 standards and is suitable for 400V three-phase five-wire systems (L1, L2, L3, N, PE).
The red voltage coding clearly identifies it as a 400V industrial connector, preventing accidental mismating.
The A156-6 model features the signature Harmony Series dual-sealing system and reinforced locking ring, ensuring IP67 waterproof and dustproof protection in harsh outdoor or industrial environments.
Its flame-retardant PA66 housing and nickel-plated copper pins deliver excellent durability, conductivity, and corrosion resistance.
This plug is ideal for applications requiring a neutral line (5-pin configuration).
Key Features
Rated Current: 16A
Rated Voltage: 400V (Red-coded)
Poles: 5P (L1, L2, L3, N, PE)
IEC 60309 Standard
IP67 protection: waterproof & dustproof
Durable flame-retardant PA66 housing
Nickel-plated copper pins for excellent conductivity
Ergonomic Harmony design for easy handling
Enhanced locking ring for robust sealing
Strong cable clamp for reliable strain relief
Typical Applications
Three-phase equipment requiring a neutral line
CNC machines
Portable distribution boards
Stage lighting & audio power supply
Ports & logistics facilities
Construction sites
Humid, dusty, or outdoor working environments
