Product Overview

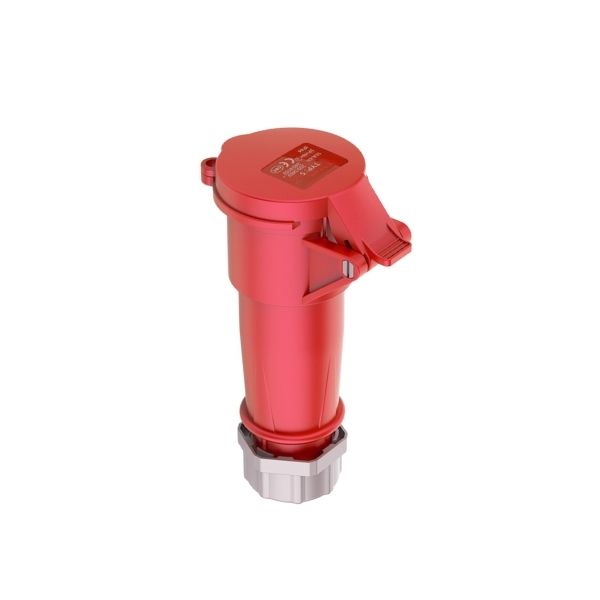

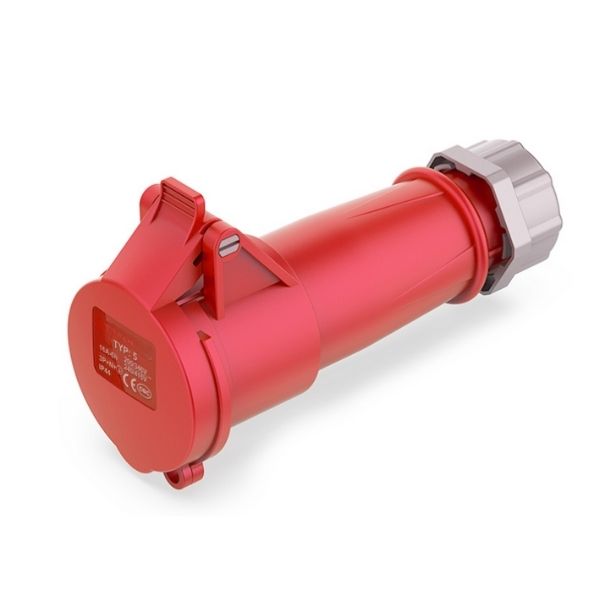

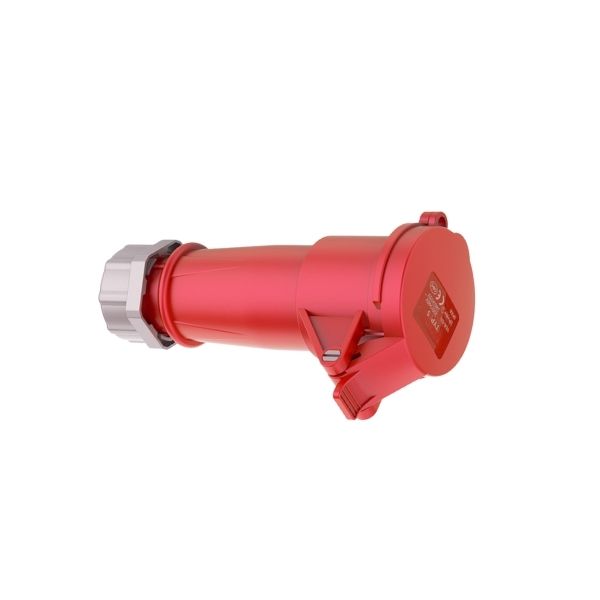

This 16A IEC 60309 industrial socket connector is designed for safe and stable power connections in three-phase industrial power systems.
Featuring a 5-pin (3P+N+E) configuration and a rated voltage of 400V, it is suitable for connecting industrial plugs to extension cables and mobile power distribution equipment.
The IP44 protection rating provides reliable protection against solid objects and water splashes, making it ideal for indoor and light outdoor industrial applications.
What Is a 16A Industrial Socket Connector?
⭐ Google Featured Snippet Core Definition
A 16A industrial socket connector is a female IEC 60309 coupling device used to connect industrial plugs to power cables, ensuring safe current transmission and reliable electrical connections in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5P (3P+N+E)
- Standard: IEC 60309
- Protection rating: IP44
- Clock position: 6H
- Mounting type: Inline
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-5 |
| Product Type | Industrial Socket Connector (Female) |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Mounting Type | Inline |
| Pin Material | Brass H59 |
Applications
This 16A 5-pin 400V industrial socket connector is widely used in three-phase power distribution systems.
- Industrial extension cables
- Factory and workshop power supply
- Mobile power distribution units
- Industrial machinery and equipment
- Temporary and maintenance power connections
