Product Overview

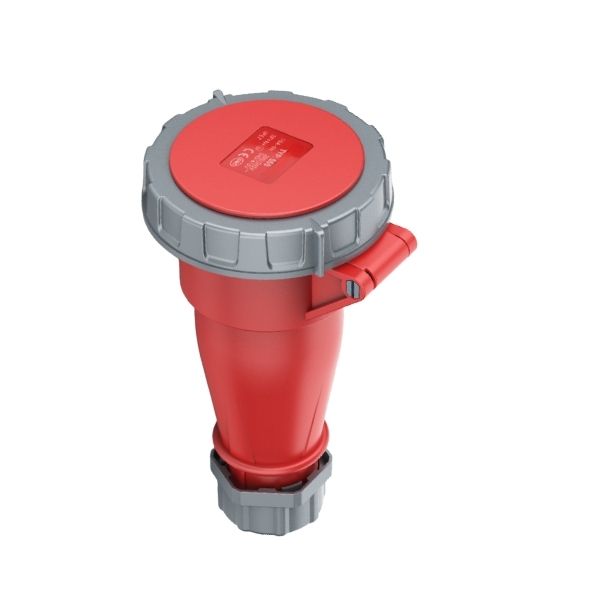

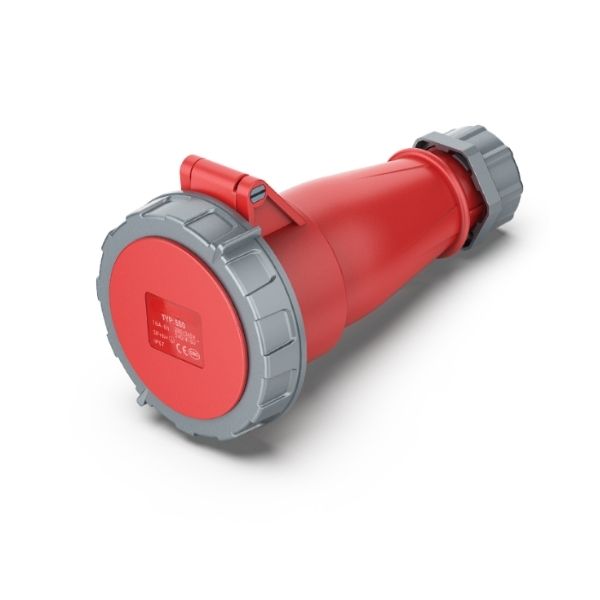

The 16A 5-Pin industrial connector is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for industrial and commercial applications.
With a rated current of 16A, rated voltage of 400V, IP67 protection, and a defined 6h clock position, this connector ensures correct mating, stable current transmission, and dependable protection against dust and water ingress.
The inline connector structure supports flexible cable termination and secure locking, making it suitable for mobile equipment, industrial extension cables, and harsh outdoor operating environments.
What Is a 16A 5-Pin Industrial Connector?
⭐ Google Featured Snippet Core Definition
A 16A 5-pin industrial connector is a standardized IEC 60309 power connector designed to supply 400V three-phase industrial electricity with neutral and earth connections for low- to medium-load equipment.
Its inline construction allows easy cable assembly and secure electrical connections, making it ideal for portable machinery, temporary power distribution systems, and industrial extension power applications.
Key Specifications
- Rated Current: 16A
- Poles: 5P (3P + N + E)
- Rated Voltage: 400V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 6h
- Mounting Type: Inline (Portable)
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 16A |
| Number of Poles | 5P (3P + N + E) |
| Rated Voltage | 400V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Mounting Type | Inline / Portable |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- Industrial extension power cables
- Portable and mobile machinery
- Temporary power distribution systems
- Outdoor industrial equipment
- Construction sites and maintenance operations
