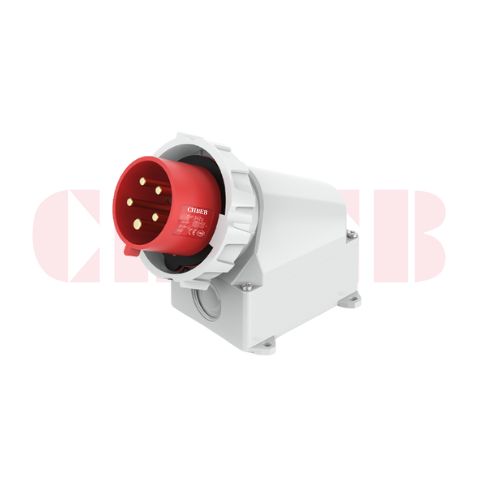

Device Inlet 16A / 5P-342a IP67 400V is designed in accordance with IEC 60309 standards and features red voltage coding for 400V, suitable for three-phase power systems with neutral (L1 + L2 + L3 + N + Earth).
This panel mount device inlet is intended for fixed installation on industrial equipment, machinery housings, or electrical enclosures, serving as a secure and standardized power input interface. It mates with compatible IEC 60309 industrial connectors to ensure reliable and safe three-phase power connections.
The housing is made of high-strength flame-retardant engineering plastic, providing excellent resistance to impact, heat, corrosion, and aging for long-term industrial use.
With an IP67 protection rating, the device inlet offers full dust protection and protection against temporary water immersion when mated, making it ideal for outdoor and harsh industrial environments.
⭐ Key Features
Rated Current: 16A
Rated Voltage: 400V (IEC Red Coding)
Poles: 5P (L1 + L2 + L3 + N + Earth)
Product Type: Device Inlet / Panel Mount Plug
Mounting Type: Equipment / Panel Mount
Protection Rating: IP67
IEC 60309 compliant
High-conductivity copper alloy pins
Rugged, sealed industrial design
⭐ Typical Applications
Three-phase equipment requiring neutral conductor
Outdoor and wet-area installations
Industrial machinery and automation systems
Electrical cabinets and distribution systems
High-protection power input interfaces
Maintenance and testing equipment
