Product Overview

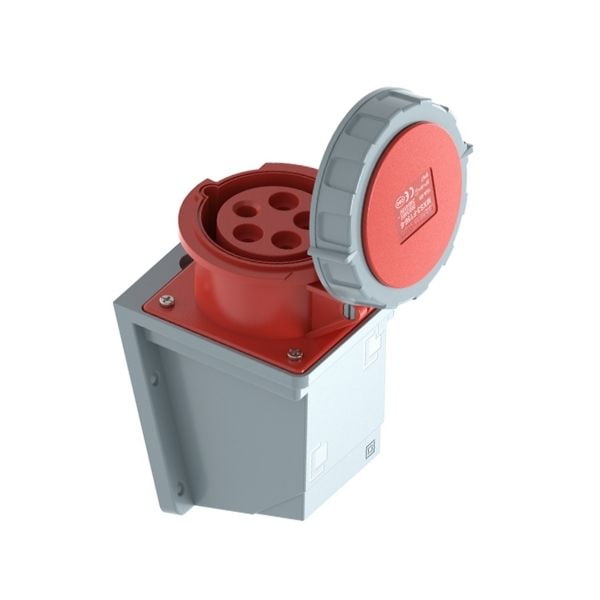

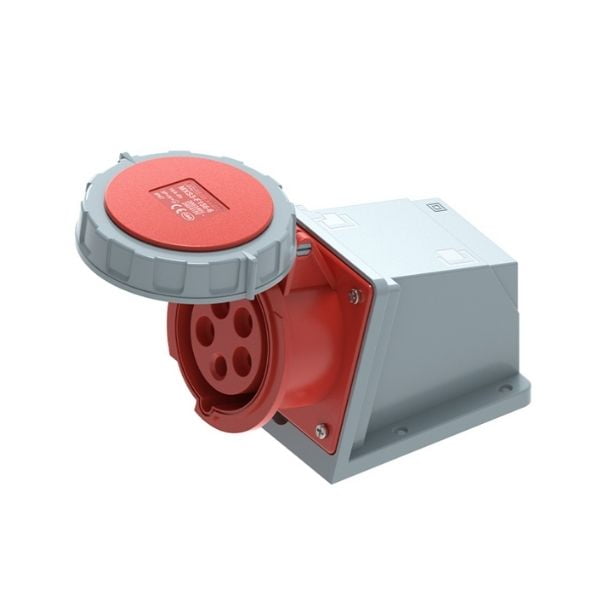

The CHBEB MX Series 16A 5-Pin Waterproof Enclosed Industrial Socket is designed in accordance with IEC 60309 standards and integrated into a sealed protective enclosure, providing safe and reliable three-phase power connections with neutral in demanding industrial environments.
With a rated current of 16A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP67 protection, this enclosed industrial socket offers excellent resistance against dust, water immersion, and wash-down conditions. The red color coding and 6h clock position clearly identify 400V three-phase power systems and prevent incorrect connections.
This MX Series IP67 enclosed socket is ideal for equipment-mounted installations where high electrical safety and environmental protection are required.
What Is a 5-Pin Waterproof Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 5-pin waterproof enclosed industrial socket is an IEC 60309 standardized power connector housed in a sealed enclosure, designed to supply three-phase power with neutral and earth in environments exposed to moisture, dust, or harsh operating conditions.
It combines IEC 60309 electrical compatibility with IP67 waterproof protection, ensuring safe and stable power distribution for industrial equipment.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67 (Waterproof)
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Waterproof Enclosed Socket Series)
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F156-6 |
| Product Type | Waterproof Enclosed Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Sealed industrial-grade insulating plastic enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A 5-pin IP67 enclosed industrial socket is widely used in:
- Three-phase industrial equipment requiring neutral connection
- Outdoor machinery and mobile power systems
- Food processing and wash-down environments
- Ports, docks, and marine installations
- Electrical cabinets exposed to moisture and dust
FAQ
Why choose a 5-pin enclosed socket instead of a 4-pin?
A 5-pin socket includes a neutral conductor, making it suitable for systems with mixed loads, control circuits, or equipment requiring single-phase outputs alongside three-phase power.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with all corresponding 16A 5-pin IEC 60309 industrial plugs.
Can this socket be used outdoors?
Yes. With an IP67 protection rating, it is suitable for outdoor and harsh industrial environments.
Why Choose CHBEB?
- Complete MX Series waterproof enclosed socket solutions
- Strict IEC 60309 compliance
- Reliable IP67 sealing performance
- OEM and customized enclosure options
- Professional support for industrial power distribution
