Product Overview

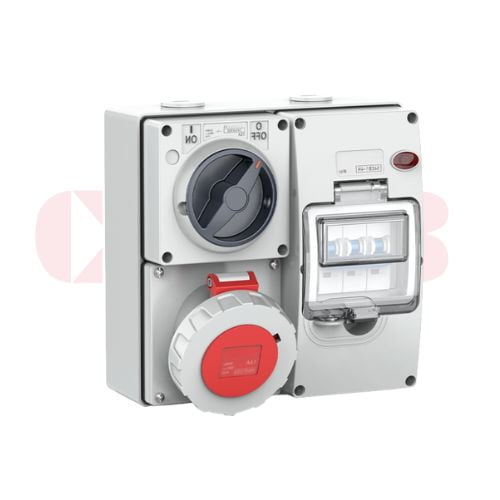

This 16A 5-pin socket outlet box with switch is an integrated industrial power distribution unit designed to provide safe power connection, isolation, and circuit protection for three-phase electrical equipment.
With a rated current of 16A, rated voltage of 400V, 5-pin configuration, and IP67 protection, this socket box integrates industrial socket outlets, rotary isolator switches, and fuse protection to ensure stable and reliable operation in harsh industrial and outdoor environments.
Its wall-mounted fixed installation design makes it suitable for machinery, control panels, workshops, and industrial power distribution systems requiring controlled, protected, and standardized power output.
What Is a 16A 5-Pin Industrial Socket Box with Switch?
⭐ Google Featured Snippet Core Definition
A 16A 5-pin industrial socket box with switch is an IEC-standard power distribution unit that combines a three-phase industrial socket, isolation switch, and protective devices to safely supply, control, and protect electrical power.
It is widely used in industrial and outdoor environments where waterproof performance, electrical safety, and controlled power distribution are required.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5-Pin
- Protection rating: IP67
- Clock position: 6h
- Protection function: Fuse & short-circuit protection
- Installation type: Wall Mounted / Fixed Installation
- Standard: IEC
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS-M46001 |
| Product Type | Socket Outlet Box with Switch |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Contact Material | Copper |
| Installation Type | Wall Mounted / Fixed Installation |
| Standard | IEC |
Applications
- Three-phase industrial machinery
- Electrical control panels
- Workshops and production lines
- Outdoor and harsh industrial environments
