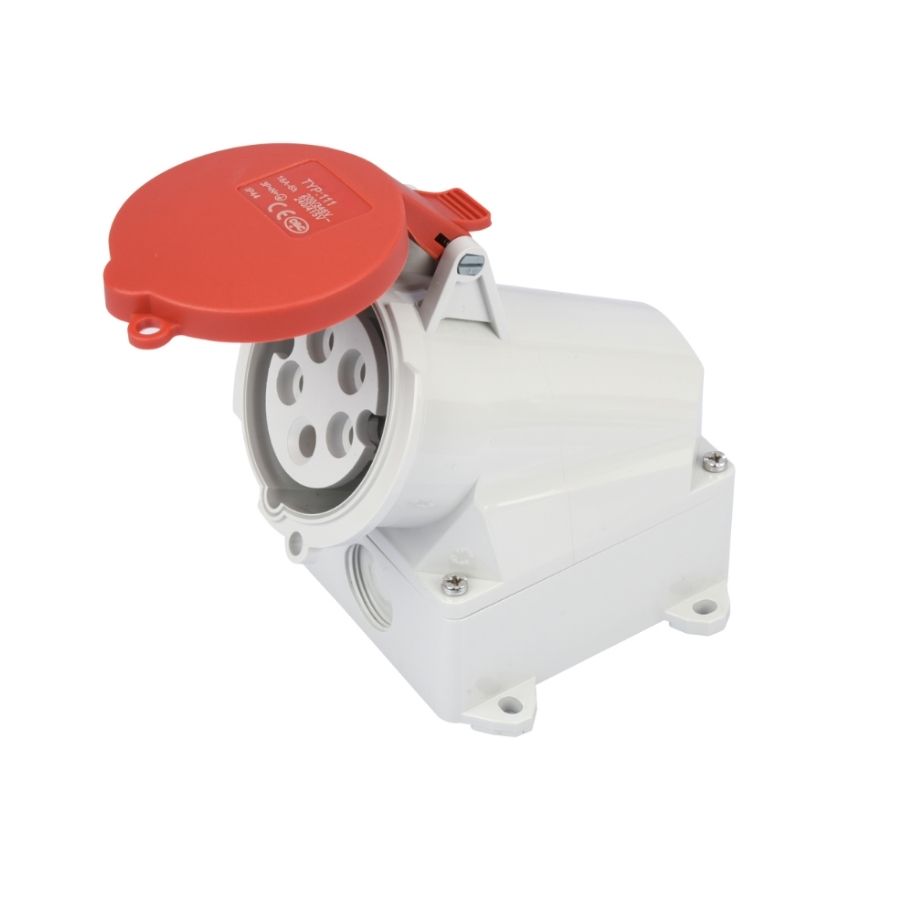

Product Overview
The CHBEB 16A 5-Pin Industrial Socket is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for three-phase industrial and commercial electrical applications.
With a rated current of 16A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP44 protection, this industrial socket ensures stable performance against dust and water splashes. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
It is widely used in industrial power distribution, machinery connections, construction sites, workshops, and temporary or fixed electrical installations.
What Is a 16A 5-Pin Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 5-pin industrial socket is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity for industrial and commercial electrical equipment.
It features a 3P+N+E pin configuration with a 6h clock position, ensuring correct phase alignment, safe grounding, and compatibility with matching IEC 60309 industrial plugs.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Standard: IEC 60309
- Application: Three-phase industrial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-111 |
| Product Type | Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 16A 5-pin IEC 60309 industrial socket is commonly used in:
- Three-phase industrial machinery
- Power distribution systems
- Construction sites and temporary power setups
- Workshops and factory installations
- Generators and electrical control panels
FAQ
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A 5-pin IEC 60309 industrial plugs.
What does the red color and 6h position indicate?
The red color and 6h clock position indicate a 400V three-phase power system, ensuring correct voltage identification and preventing misconnection.
Is IP44 protection suitable for industrial environments?
Yes. IP44 protection provides resistance against solid objects and water splashes, making it suitable for indoor and semi-outdoor industrial applications.
Why Choose CHBEB?
- Over 20 years of experience in industrial electrical products
- Strict quality control and 100% final inspection
- Full IEC 60309 standard compliance
- Stable production capacity for bulk orders
- OEM and customization services available
