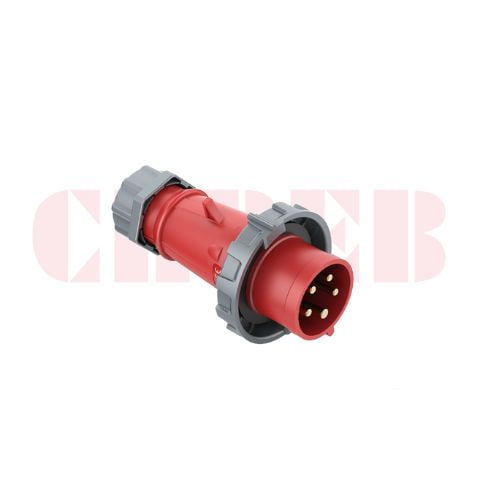

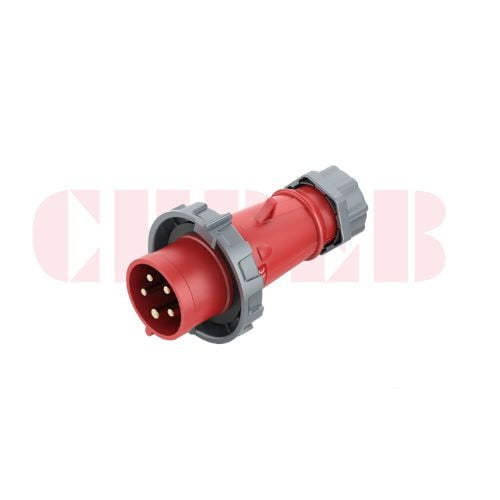

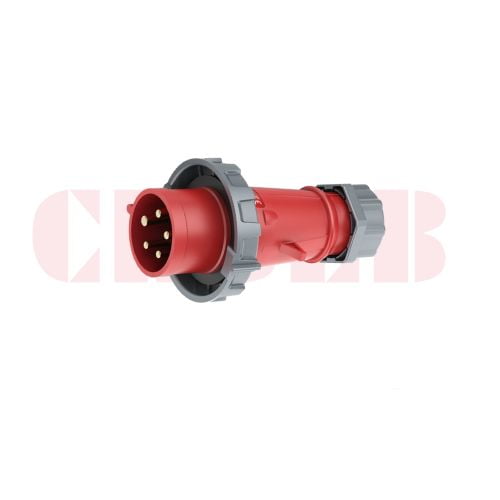

Product Overview
The CHBEB 16A 5-Pin Industrial Plug is designed in accordance with IEC 60309 standards to provide safe and reliable power connections for industrial and commercial applications.
With a rated current of 16A, rated voltage of 400V, IP67 protection, and a defined 6h clock position, this plug ensures correct orientation, reliable grounding, and excellent resistance to dust and water ingress in harsh environments.
It is widely used in three-phase industrial machinery, power distribution systems, construction sites, and outdoor installations requiring high protection levels.
What Is a 16A 5-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 16A 5-pin industrial plug is a standardized three-phase power connector defined by IEC 60309, designed to supply 400V power for industrial and commercial electrical equipment.
It features a 3P+N+E pin configuration with a specified 6h clock position, ensuring reliable grounding, correct alignment, and prevention of incorrect connections.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67
- Clock position: 6h
- Standard: IEC 60309
- Application: Industrial and commercial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-288 |
| Product Type | Industrial Plug |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 16A 5-pin IEC 60309 industrial plug is commonly used in:
- Three-phase industrial machinery
- Power distribution boards and extension cables
- Construction sites and temporary power systems
- Outdoor and harsh-environment installations
- Industrial power distribution equipment
FAQ
Is this plug compatible with standard IEC 60309 sockets?
Yes. This plug complies with IEC 60309 standards and is compatible with corresponding IEC 60309 industrial sockets with the same voltage rating and 6h clock position.
What does the 6h clock position mean?
The 6h clock position defines the physical orientation of the earth pin, ensuring correct alignment and preventing connection to sockets with different voltage ratings.
What does IP67 protection mean?
IP67 indicates full protection against dust ingress and temporary immersion in water, making the plug suitable for o
