Product Overview

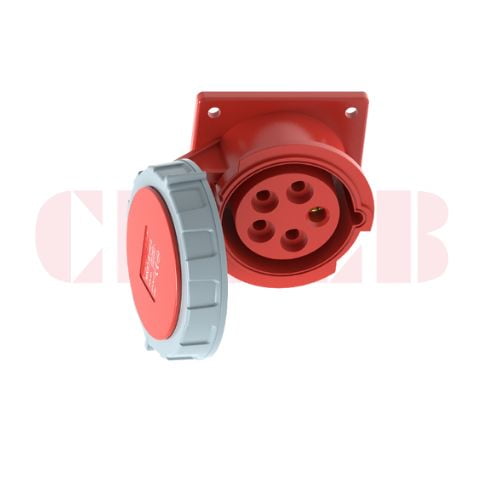

The CHBEB MX Series 16A 5-Pin Flanged Industrial Socket is designed in strict accordance with IEC 60309 standards and engineered for secure panel mounting in demanding industrial environments.
With a rated current of 16A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP67 protection rating, this socket provides reliable power connection with excellent resistance to dust, moisture, and water ingress. The red color coding and 6h clock position ensure correct voltage identification and prevent incorrect connections.
Its flanged mounting structure allows stable installation on panels, control cabinets, and industrial equipment housings, making it ideal for fixed three-phase power distribution points that require a neutral conductor.
What Is a 16A 5-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 5-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet with neutral and earth, designed for panel mounting and used to safely distribute 400V industrial power in fixed installations.
It ensures stable phase distribution, neutral continuity, reliable grounding, and high ingress protection in harsh industrial and outdoor environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B156-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A IP67 5-pin flanged industrial socket is widely used in:
- Three-phase equipment requiring neutral connection
- Electrical control panels and switchboards
- Outdoor and wet industrial environments
- Factories and industrial machinery
- Fixed three-phase power distribution points
FAQ
Why choose a 5-pin flanged socket?
A 5-pin socket includes a neutral conductor, making it suitable for equipment that requires both three-phase and single-phase loads.
Is IP67 necessary for industrial installations?
IP67 protection ensures full dust protection and resistance to temporary water immersion, ideal for outdoor or harsh industrial environments.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A 5-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Reliable performance in harsh industrial conditions
- OEM and customization services available
