Product Overview

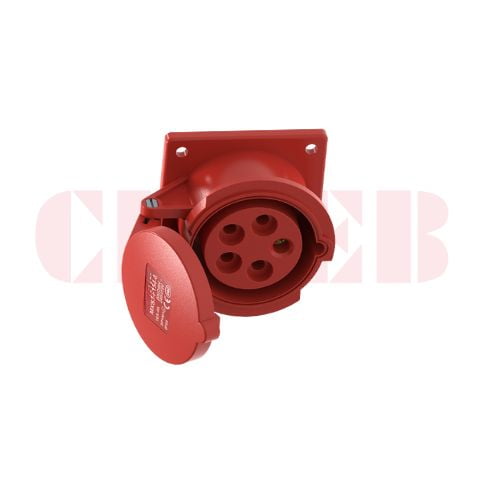

The CHBEB MX Series 16A 5-Pin Flanged Industrial Socket is manufactured in accordance with IEC 60309 standards and designed for secure panel mounting, providing safe and stable power connections for three-phase industrial systems with neutral requirements.
With a rated current of 16A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP44 protection rating, this flanged socket delivers reliable performance against solid objects and water splashes. The red color coding and 6h clock position ensure correct voltage identification and prevent mismatched connections.
Its flange-mounted structure allows easy installation on control panels, electrical cabinets, machinery enclosures, and power distribution boxes, making it ideal for fixed industrial power outlets.
What Is a 16A 5-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 5-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet with neutral and earth, designed for panel mounting and used to safely distribute 400V industrial power.
It ensures balanced phase distribution, neutral continuity, reliable grounding, and secure fixed installation in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B154-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A IP44 5-pin flanged industrial socket is widely used in:
- Three-phase equipment requiring neutral connection
- Electrical control panels and cabinets
- Distribution boxes and power panels
- Factories and workshops
- Fixed industrial power connection points
FAQ
Why choose a 5-pin flanged socket?
A 5-pin socket includes a neutral conductor, making it suitable for industrial equipment that combines three-phase and single-phase loads.
Is IP44 protection sufficient for industrial use?
IP44 is suitable for indoor and semi-outdoor environments where protection against solid objects and water splashes is required.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A 5-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Durable construction for industrial applications
- OEM and customization services available
