Product Overview

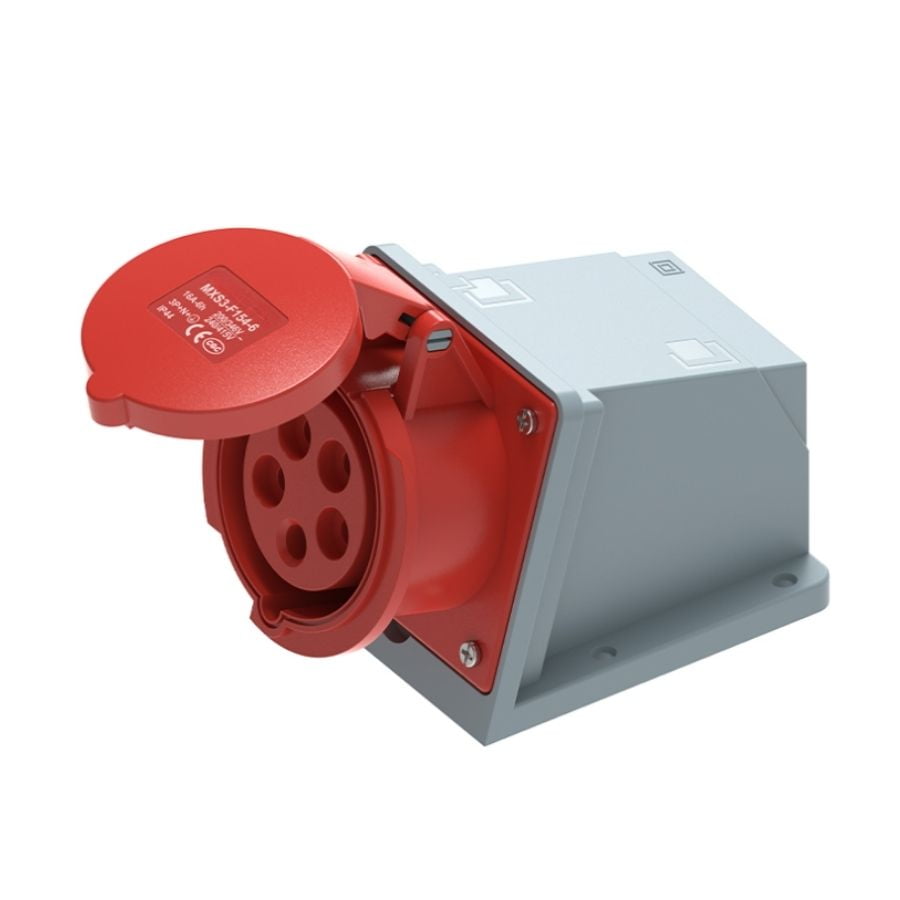

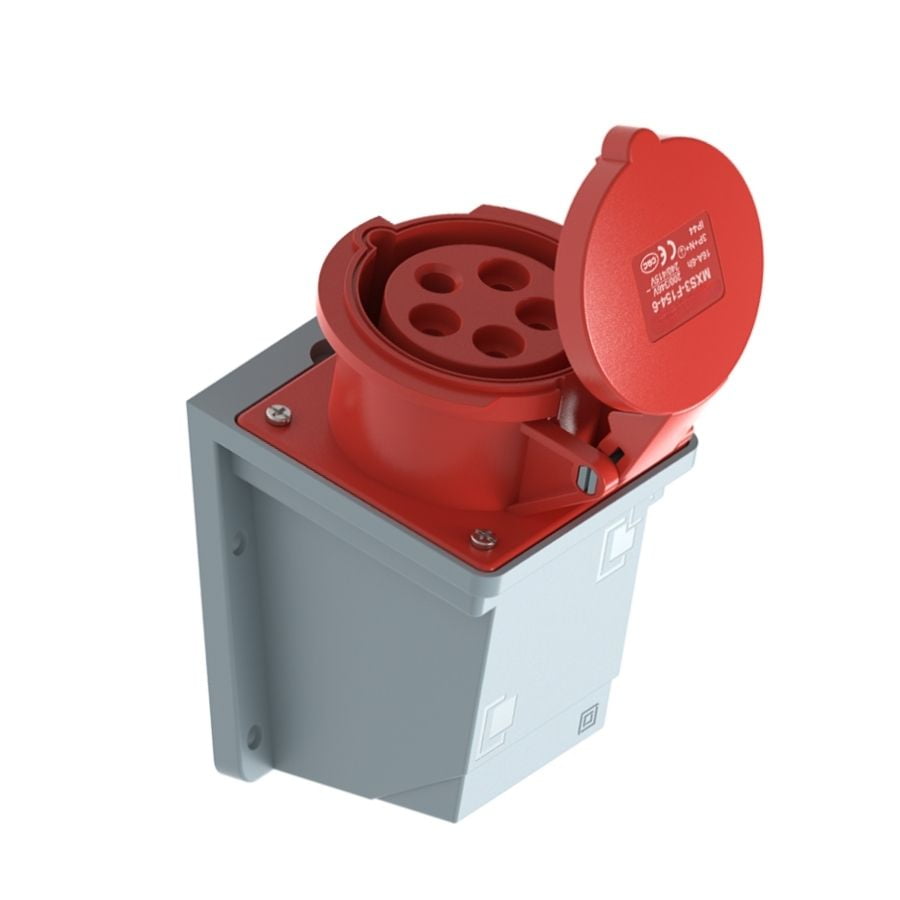

The CHBEB MX Series 16A 5-Pin Enclosed Industrial Socket is designed in accordance with IEC 60309 standards and integrated into a robust protective housing, providing safe and reliable three-phase power connections with a neutral conductor for industrial equipment and control systems.
With a rated current of 16A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP44 protection, this enclosed industrial socket offers enhanced mechanical protection and stable electrical performance. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
The MX Series enclosure allows direct mounting onto machines, control cabinets, and distribution boxes, making it an ideal solution for OEM equipment manufacturers and industrial system integrators.
What Is an Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
An enclosed industrial socket is an IEC 60309 standardized power connector integrated into a protective housing, designed to provide safer, more durable, and easier-to-install electrical connections for industrial equipment.
It combines the electrical reliability of IEC 60309 industrial sockets with additional mechanical protection, improving installation efficiency and service life in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
- Application: Equipment-mounted three-phase power connection with neutral
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F154-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A 5-pin enclosed industrial socket is widely used in:
- Industrial machinery and automation equipment
- Electrical control panels and cabinets
- OEM equipment manufacturing
- Power distribution and junction boxes
- Three-phase systems requiring a neutral conductor
FAQ
When should I choose a 5-pin enclosed industrial socket?
A 5-pin socket is required when the electrical system needs a neutral conductor in addition to three phases and earth, especially for mixed loads and control circuits.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A IEC 60309 industrial plugs.
Is IP44 suitable for industrial equipment installation?
IP44 protection is suitable for indoor and light industrial environments, offering protection against solid objects and water splashes.
