Product Overview

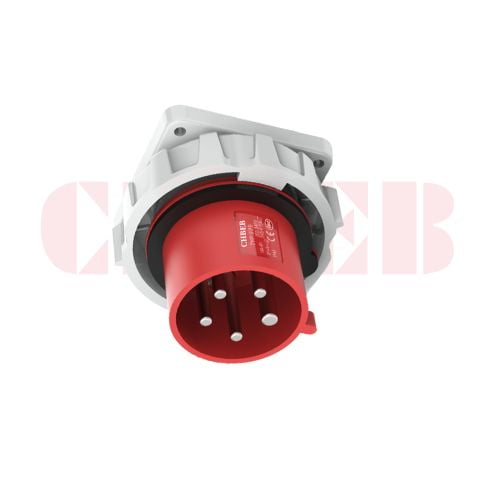

The CHBEB 16A 5-Pin Appliance Inlet is manufactured in accordance with IEC 60309 standards and is designed to provide a safe, waterproof, and reliable fixed power input solution for industrial equipment.
Featuring a rated current of 16A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP67 protection, this appliance inlet ensures stable electrical performance in wet, dusty, and harsh industrial environments. The red color coding and 6h clock position prevent incorrect voltage connections.
Its rugged panel-mounted design makes it ideal for permanent installation on industrial machinery, electrical enclosures, and control cabinets.
What Is a 16A 5-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 16A 5-pin appliance inlet is an IEC 60309 standardized male connector installed on electrical equipment, designed to safely receive 400V three-phase power with neutral and earth connections.
It is widely used as a fixed power inlet for three-phase industrial machines and power distribution systems.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-829 |
| Product Type | Appliance Inlet |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Three-phase industrial machinery
- Electrical control panels
- Power distribution equipment
- Outdoor and mobile industrial devices
- Wet, dusty, and wash-down environments
FAQ
What does IP67 protection mean?
IP67 ensures complete dust protection and resistance to temporary water immersion, making it suitable for outdoor and harsh industrial applications.
Is this inlet compatible with IEC 60309 16A red plugs?
Yes. This appliance inlet is fully compatible with IEC 60309 16A 400V red industrial plugs.
Why choose a 5-pin appliance inlet?
The 5-pin (3P+N+E) configuration provides a neutral conductor, making it suitable for a wider range of three-phase industrial equipment.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet range
- Current ratings from 16A to 125A
- IP44 and IP67 options available
- High-quality H59 brass contacts
- OEM and customization services supported
