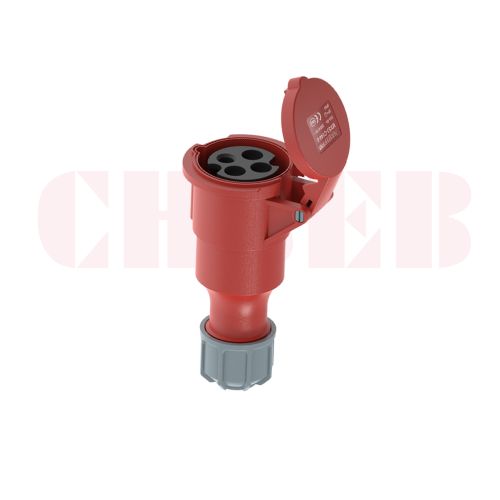

Harmony Series 16A/4P-MXS3-C144-6 IP44 400V Industrial Connector is designed for 3-phase + Neutral 400V systems, providing a safe and reliable power interface for industrial machinery and light-duty power distribution.
With IEC 60309 red voltage coding (400V), it prevents mismatching between different voltage systems, ensuring operational safety.
The connector housing is molded from high-strength flame-retardant PA66, offering excellent resistance to impact, abrasion, and aging.
A front hinged protective cover enhances dust and splash resistance, making the connector suitable for general industrial environments.
Rated IP44, this connector is ideal for indoor industrial power distribution, 3-phase equipment interfaces, temporary power connections, and portable machinery.
⭐ Key Features
Rated Current: 16A
Rated Voltage: 400V (IEC Red Coding)
Poles: 4P (3L + N + Earth)
IP44 protection for dust & splashing water
Durable PA66 flame-retardant housing
Nickel-plated copper contacts for superior conductivity
Hinged protective cover for safer operation
Fully compatible with Harmony Series plugs & sockets
⭐ Typical Applications
Three-phase power equipment
Light industrial machinery
Construction site temporary power
Factory distribution boards and control panels
HVAC systems and pumps
Event power distribution (stage, exhibition, etc.)
