Product Overview

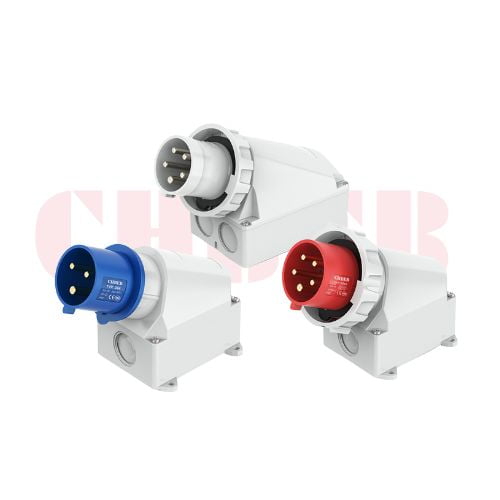

The 16A 4-Pin wall mounted industrial plug is manufactured in accordance with IEC 60309 standards, providing a secure and reliable fixed power connection for industrial and commercial applications.
With a rated current of 16A, rated voltage of 400V, IP67 protection, and a defined 6h clock position, this plug ensures correct mating, stable current transmission, and excellent resistance to dust and water ingress.
The wall mounted design allows permanent installation on equipment enclosures and distribution boxes, making it suitable for fixed three-phase industrial power supply points in harsh environments.
What Is a 16A 4-Pin Wall Mounted Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 16A 4-pin wall mounted industrial plug is a standardized IEC 60309 power connector designed to provide a fixed 400V three-phase industrial power interface.
Its wall mounted construction enables secure and permanent installation, making it ideal for industrial machinery, workshops, and power distribution systems requiring high protection levels.
Key Specifications
- Rated Current: 16A
- Poles: 4P (3P + E)
- Rated Voltage: 400V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 6h
- Mounting Type: Wall Mounted / Panel Mounted
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 16A |
| Number of Poles | 4P (3P + E) |
| Rated Voltage | 400V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Mounting Type | Wall Mounted / Panel Mounted |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- Fixed three-phase industrial power outlets
- Industrial machinery power inputs
- Workshops and factories
- Outdoor and harsh environment installations
- Industrial distribution and maintenance systems
