Product Overview

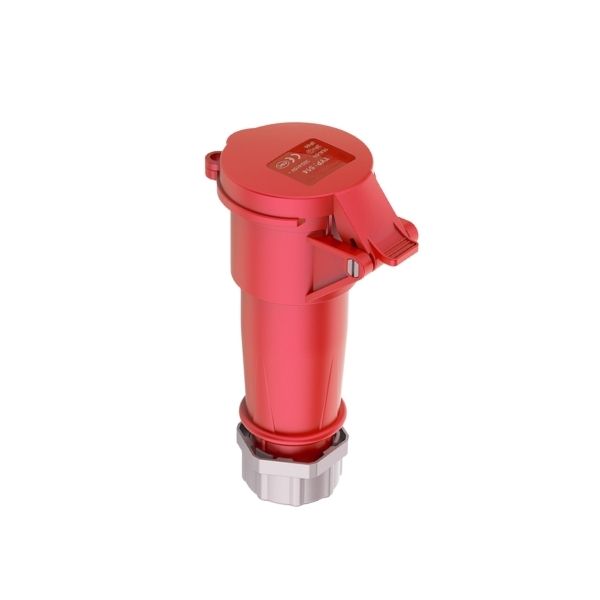

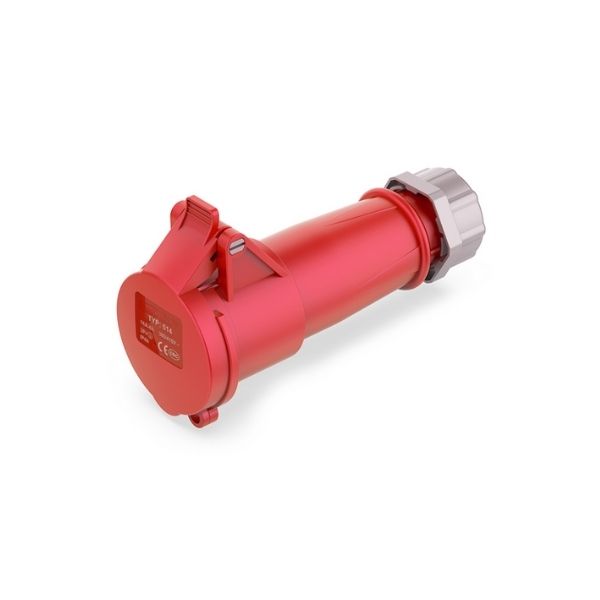

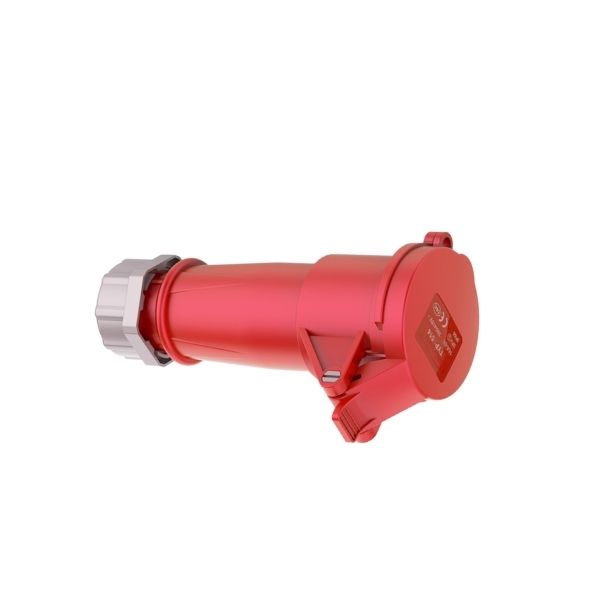

This 16A IEC 60309 industrial socket connector is designed for safe and reliable power connections in three-phase low-voltage industrial systems.
With a 4-pin (3P+E) configuration and a rated voltage of 400V, it is suitable for connecting industrial plugs to extension cables and mobile power distribution equipment.
The IP44 protection rating ensures protection against solid objects and water splashes, making it ideal for indoor and light outdoor industrial applications.
What Is a 16A Industrial Socket Connector?
⭐ Google Featured Snippet Core Definition
A 16A industrial socket connector is a female IEC 60309 coupling device used to connect industrial plugs to power cables, ensuring safe current transmission and reliable electrical connections in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 4P (3P+E)
- Standard: IEC 60309
- Protection rating: IP44
- Clock position: 6H
- Mounting type: Inline
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-514 |
| Product Type | Industrial Socket Connector (Female) |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Mounting Type | Inline |
| Pin Material | Brass H59 |
Applications
This 16A 400V inline industrial socket connector is widely used in three-phase industrial power connection systems.
- Industrial extension cables
- Factory and workshop power distribution
- Mobile power supply systems
- Maintenance and service equipment
- Light outdoor industrial installations
