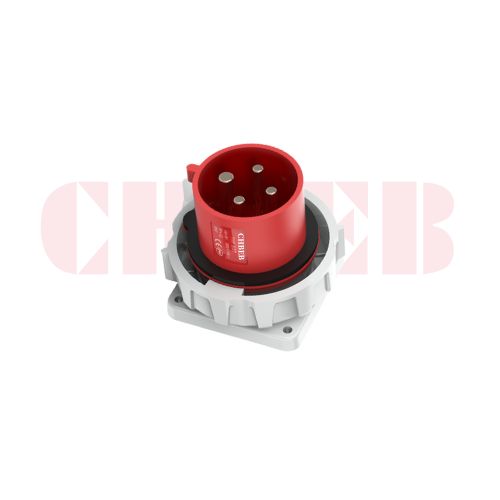

Panel Mount Inlet 16A/4P-827 IP67 400V is designed for three-phase 400V power systems (3P + PE) and follows IEC 60309 red voltage coding, ensuring correct and safe power connections.
This model features a panel-mounted inlet design, allowing secure installation on equipment enclosures, control panels, and distribution boards.
The housing is manufactured from high-strength flame-retardant PA66, offering excellent resistance to impact, heat, corrosion, and long-term aging.
With an IP67 protection rating, the inlet is fully dustproof and protected against temporary immersion, making it ideal for harsh indoor and outdoor industrial environments.
⭐ Key Features
Rated Current: 16A
Rated Voltage: 400V (IEC Red Coding)
Poles: 4P (3P + Earth)
Mounting Type: Panel Mount Inlet
Protection Rating: IP67
Durable flame-retardant PA66 housing
Nickel-plated copper contacts for stable conductivity
Sealed structure for long-term reliability
Fully compliant with IEC 60309 standard
⭐ Typical Applications
Three-phase industrial equipment
Control panels and distribution boxes
Outdoor machinery and power systems
Pumps, fans, and motor-driven equipment
Food processing and wash-down areas
Warehouses and industrial power distribution
