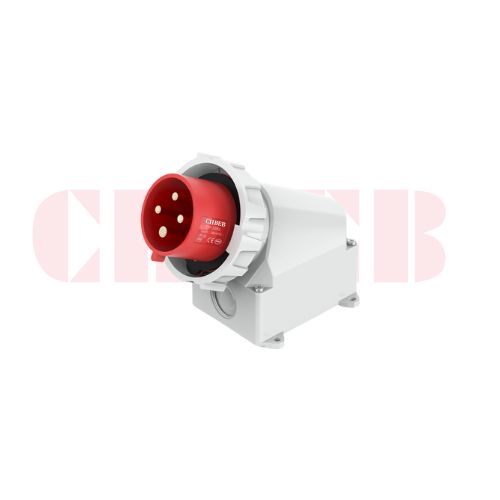

Device Inlet 16A / 4P-336a IP67 400V is designed in accordance with IEC 60309 standards and features red voltage coding for 400V, suitable for three-phase power systems (L1 + L2 + L3 + Earth).
This panel mount device inlet is intended for fixed installation on equipment housings, machinery, or electrical enclosures, serving as a secure power input interface. It mates with corresponding IEC 60309 industrial connectors to ensure safe, reliable, and standardized three-phase power connections.
The housing is made of high-strength flame-retardant engineering plastic, providing excellent resistance to impact, heat, corrosion, and aging for long-term industrial use.
With an IP67 protection rating, the device inlet offers complete dust protection and protection against temporary water immersion when mated, making it ideal for outdoor and harsh industrial environments.
⭐ Key Features
Rated Current: 16A
Rated Voltage: 400V (IEC Red Coding)
Poles: 4P (L1 + L2 + L3 + Earth)
Product Type: Device Inlet / Panel Mount Plug
Mounting Type: Equipment / Panel Mount
Protection Rating: IP67
IEC 60309 compliant
High-conductivity copper alloy pins
Rugged, high-protection industrial design
⭐ Typical Applications
Three-phase industrial equipment
Outdoor and wet-area installations
Industrial machinery and automation systems
Electrical cabinets and distribution systems
Temporary three-phase power connections
Maintenance and testing equipment
