Product Overview

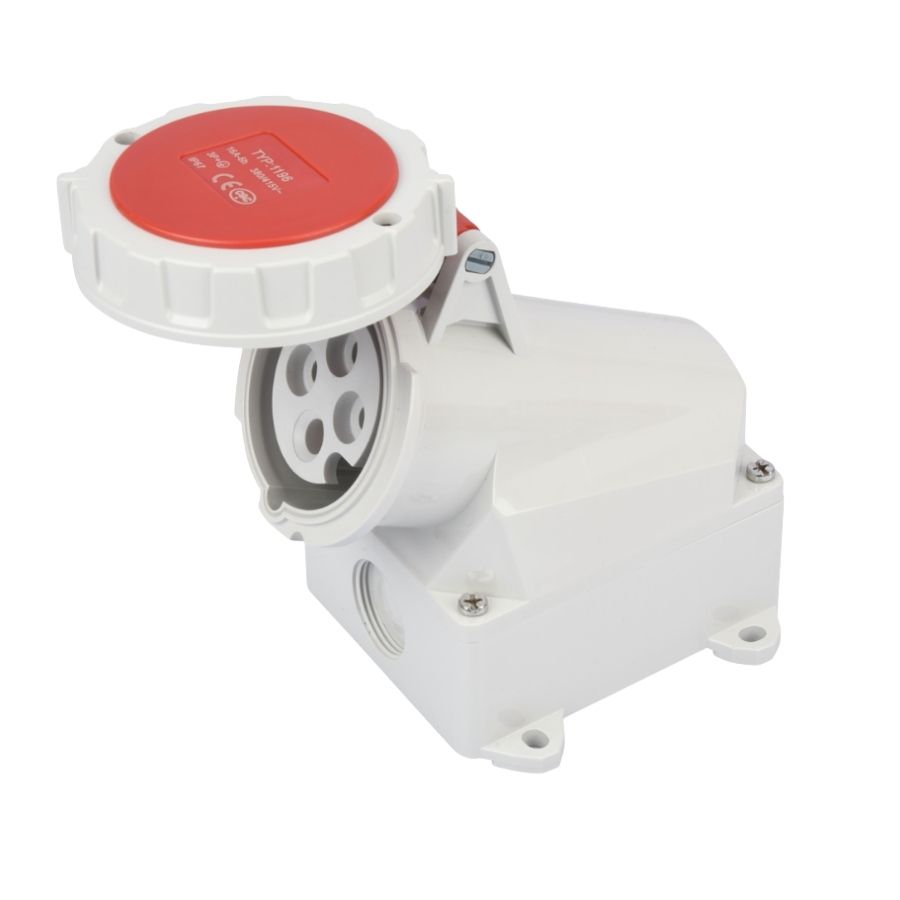

The CHBEB 16A 4-Pin Waterproof Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing safe and reliable three-phase power connections for harsh industrial and outdoor environments.
With a rated current of 16A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP67 protection, this industrial socket offers excellent resistance against dust, water immersion, and demanding environmental conditions. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
It is ideal for industrial installations where high waterproof performance and long-term reliability are required.
What Is a 16A 4-Pin Waterproof Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 4-pin waterproof industrial socket is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity while providing enhanced protection against water and dust ingress.
It features a 3P+E pin configuration with an IP67 waterproof rating and a 6h clock position, ensuring safe grounding, correct phase alignment, and compatibility with matching IEC 60309 industrial plugs in harsh environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67 (Waterproof)
- Clock position: 6h
- Color code: Red (400V)
- Standard: IEC 60309
- Application: Waterproof three-phase industrial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1196 |
| Product Type | Waterproof Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 16A 4-pin IEC 60309 waterproof industrial socket is commonly used in:
- Outdoor industrial installations
- Construction sites and temporary outdoor power systems
- Ports, docks, and marine environments
- Factories with wash-down or high-humidity areas
- Three-phase machinery requiring waterproof connections
FAQ
What is the difference between IP44 and IP67 industrial sockets?
IP44 sockets protect against solid objects and water splashes, while IP67 sockets provide full dust protection and resistance to temporary water immersion, making them suitable for harsh and outdoor environments.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A 4-pin IEC 60309 industrial plugs.
Is IP67 suitable for outdoor and wet environments?
Yes. IP67 protection is specifically designed for outdoor, wet, and wash-down environments where high waterproof performance is required.
Why Choose CHBEB?
- Over 20 years of experience in industrial electrical products
- Strict quality control and waterproof performance testing
- Full IEC 60309 standard compliance
- Stable production capacity for bulk orders
- OEM and customization services available
