Product Overview

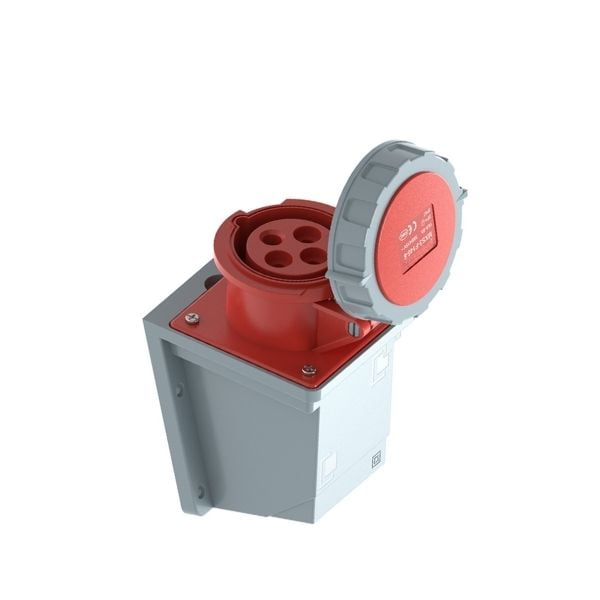

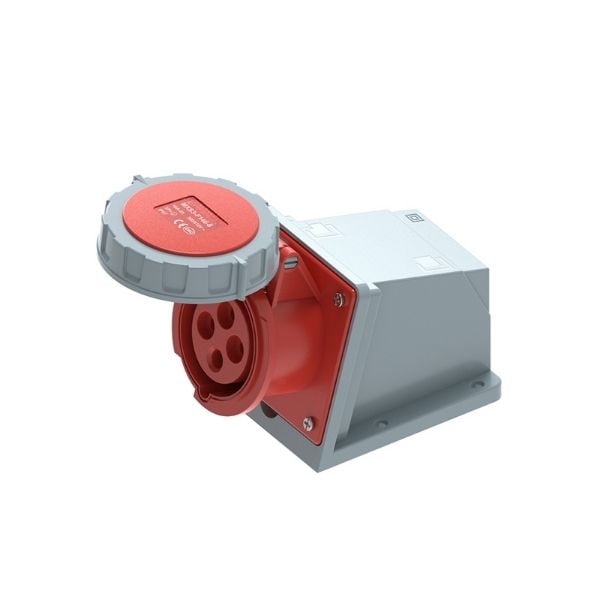

The CHBEB MX Series 16A 4-Pin Waterproof Enclosed Industrial Socket is designed in accordance with IEC 60309 standards and integrated into a sealed protective housing, providing safe and reliable three-phase power connections for industrial equipment operating in harsh environments.
With a rated current of 16A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP67 protection, this enclosed industrial socket offers excellent resistance against dust, water immersion, and wash-down conditions. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
The MX Series IP67 enclosure allows direct installation on machines, outdoor equipment, and electrical cabinets where enhanced environmental protection is required.
What Is a Waterproof Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A waterproof enclosed industrial socket is an IEC 60309 standardized power connector integrated into a sealed protective housing, designed to provide safe electrical connections in environments exposed to moisture, dust, or frequent wash-down.
It combines IEC 60309 electrical reliability with IP67 environmental protection, ensuring durability and safety in demanding industrial applications.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67 (Waterproof)
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Waterproof Enclosed Socket Series)
- Standard: IEC 60309
- Application: Equipment-mounted waterproof three-phase power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F146-6 |
| Product Type | Waterproof Enclosed Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Sealed industrial-grade insulating plastic enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A 4-pin IP67 enclosed industrial socket is widely used in:
- Outdoor industrial machinery and equipment
- Food processing and wash-down environments
- Electrical control cabinets exposed to moisture
- Ports, docks, and temporary outdoor installations
- Three-phase industrial systems without neutral conductor
FAQ
What is the difference between 4-pin and 5-pin IP67 enclosed sockets?
A 4-pin socket is used when neutral is not required, while a 5-pin socket includes a neutral conductor for applications involving mixed loads or control circuits.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A IEC 60309 industrial plugs.
Can this socket be installed outdoors?
Yes. The IP67 protection rating makes it suitable for outdoor installations and harsh industrial environments.
