Product Overview

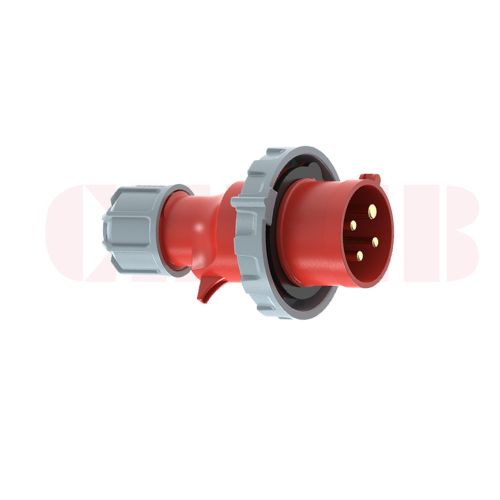

The CHBEB Harmony Series 16A industrial plug is designed for reliable three-phase power connections in industrial and commercial environments.
Featuring a 4-pin configuration and a rated voltage of 400V, this plug supports three-phase power with protective earth, ensuring stable and safe electrical performance.
With an IP67 protection rating, the plug provides full resistance against dust ingress and temporary water immersion, making it suitable for demanding indoor and outdoor applications.
What Is a 16A 4-Pin Industrial Plug?
A 16A 4-pin industrial plug is a three-phase electrical connector rated for 400 volts, designed with three phase conductors and earth to deliver stable and safe power for industrial equipment.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Clock position: 6H
- Protection rating: IP67
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-A146-6 |
| Series | Harmony Series |
| Product Type | Industrial Plug |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 4P |
| Clock Position | 6H |
| Protection Rating | IP67 |
| Pin Material | Brass H59 |
Applications
This 16A 4-pin industrial plug is suitable for three-phase power connections where moderate current and high environmental protection are required.
- Three-phase industrial machinery
- Outdoor power distribution points
- Construction sites and temporary installations
- Factories with wet, dusty, or wash-down conditions
- Commercial facilities requiring IP67-rated connectors
