Product Overview

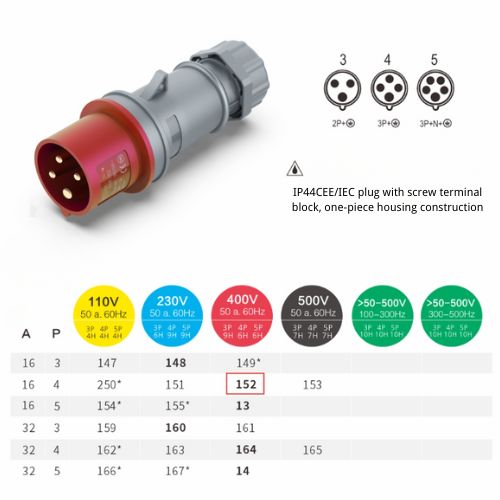

The CHBEB 16A 4-Pin Industrial Plug is designed in accordance with IEC 60309 standards to provide safe and reliable power connections for industrial and commercial applications.
With a rated current of 16A, rated voltage of 400V, and IP44 protection, this plug ensures stable performance against dust and water splashes. The red color coding with a 6h clock position allows correct voltage identification and prevents incorrect connections.
Featuring a split-type structure, the plug allows easier cable installation and maintenance, making it suitable for flexible wiring and on-site assembly.
It is widely used in three-phase industrial equipment, workshops, power distribution systems, generators, and construction sites.
What Is a 16A 4-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 16A 4-pin industrial plug is a standardized three-phase power connector defined by IEC 60309, designed to supply 400V power to industrial machinery and equipment.
It features a 3P+E pin configuration, providing reliable grounding, stable current transmission, and safe operation in demanding industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red
- Structure: Split-type design
- Standard: IEC 60309
- Application: Industrial and commercial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-152 |
| Product Type | Industrial Plug |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Structure | Split-type design |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 16A 4-pin IEC 60309 industrial plug is commonly used in:
- Three-phase industrial machinery
- Construction sites and temporary power systems
- Power distribution boards and extension cables
- Generators and industrial equipment
- Workshops and factory installations
FAQ
Is this plug compatible with European CEE sockets?
Yes. This plug fully complies with IEC 60309 standards and is compatible with standard European CEE industrial sockets.
What does the red color and 6h position mean?
The red color indicates 400V three-phase voltage, and the 6h clock position ensures correct phase alignment and prevents misconnection.
What is the advantage of the split-type design?
The split-type structure allows easier cable installation and maintenance, making it ideal for on-site wiring and flexible industrial applications.
Is IP44 suitable for outdoor use?
IP44 protection is suitable for indoor and semi-outdoor environments, protecting against dust and water splashes.
