Product Overview

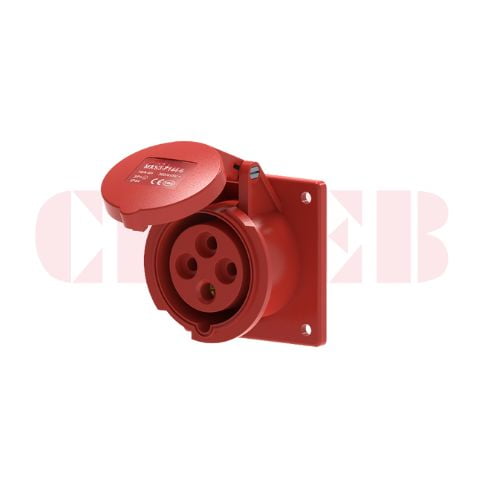

The CHBEB MX Series 16A 4-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards and engineered for secure panel mounting, providing a reliable power connection solution for three-phase industrial equipment.
With a rated current of 16A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP44 protection rating, this flanged socket ensures dependable performance against solid objects and water splashes. The red color coding and 6h clock position guarantee correct voltage identification and prevent incorrect connections.
Its compact flange-mounted structure allows easy installation onto control panels, electrical cabinets, machinery enclosures, and distribution boxes, making it ideal for fixed industrial power outlets.
What Is a 16A 4-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 4-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet with earth, designed for panel mounting and used to safely supply 400V industrial power.
It provides stable phase transmission, reliable grounding, and secure fixed installation in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B144-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A IP44 4-pin flanged industrial socket is widely used in:
- Three-phase industrial machinery
- Electrical control panels and cabinets
- Distribution boxes and power panels
- Factories and workshops
- Fixed three-phase power connection points
FAQ
What is the benefit of a flanged industrial socket?
Flanged sockets allow secure panel mounting, offering a compact, stable, and professional solution for fixed industrial power outlets.
Is IP44 sufficient for industrial applications?
IP44 protection is suitable for indoor and semi-outdoor environments where protection against solid objects and water splashes is required.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A 4-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Durable construction for industrial use
- OEM and customization services available
