Product Overview

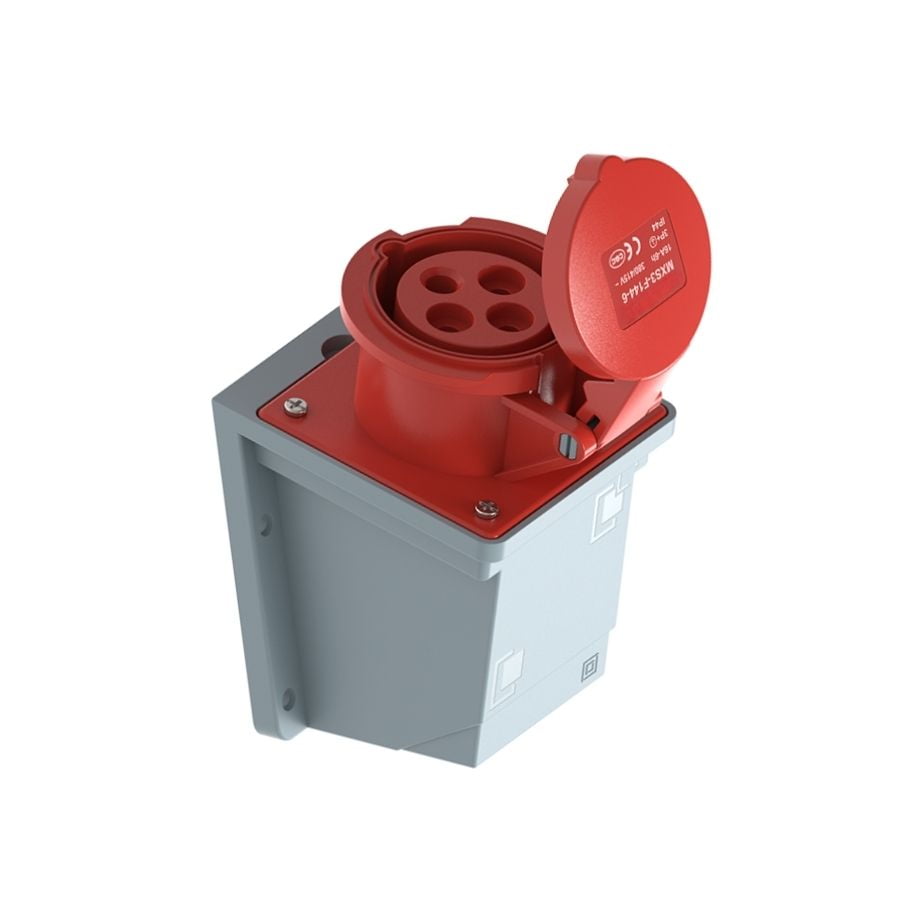

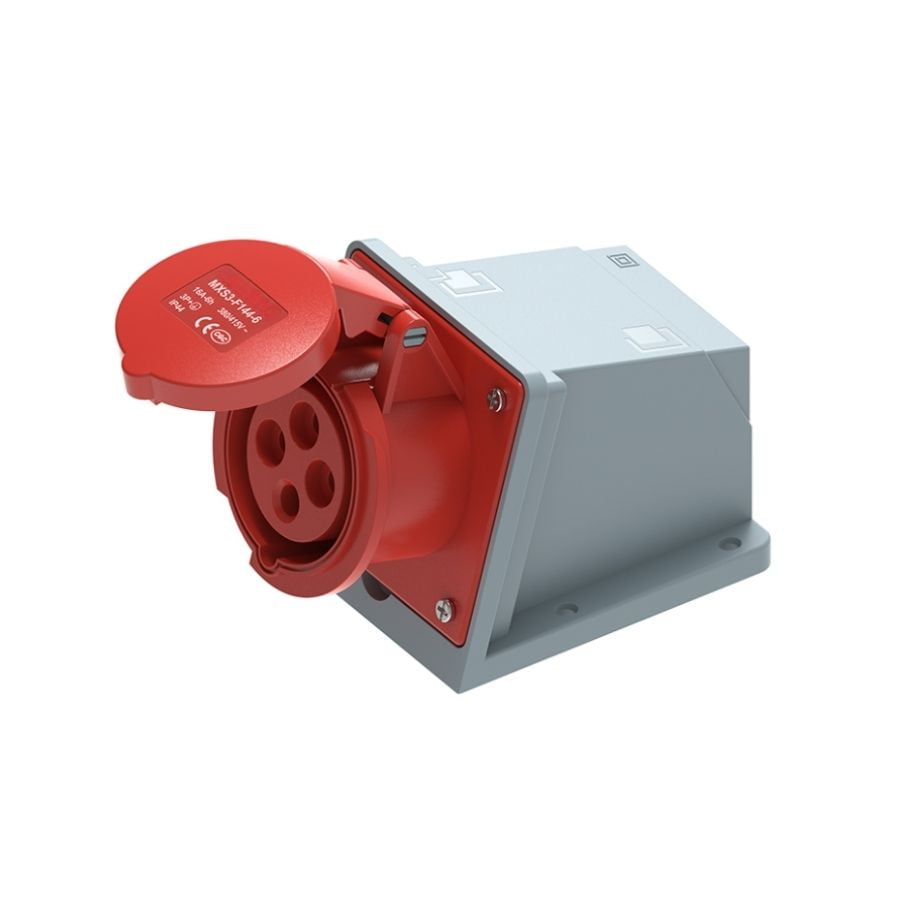

The CHBEB MX Series 16A 4-Pin Enclosed Industrial Socket is designed in accordance with IEC 60309 standards and integrated into a durable protective housing, providing safe and convenient three-phase power connections for industrial equipment and control systems.
With a rated current of 16A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP44 protection, this enclosed industrial socket offers enhanced mechanical protection and stable electrical performance. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
The MX Series enclosure enables direct mounting onto machines, control panels, and distribution boxes, making it an ideal choice for OEM equipment manufacturers and industrial system integrators.
What Is an Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
An enclosed industrial socket is an IEC 60309 standardized power connector integrated into a protective housing, designed to provide safer, more durable, and easier-to-install electrical connections for industrial equipment.
It combines the electrical reliability of IEC 60309 sockets with added mechanical protection, improving installation efficiency and service life in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
- Application: Equipment-mounted three-phase power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F144-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A 4-pin enclosed industrial socket is widely used in:
- Industrial machinery and automation equipment
- Electrical control panels and cabinets
- OEM equipment manufacturing
- Power distribution and junction boxes
- Three-phase industrial systems without neutral conductor
FAQ
What is the advantage of an enclosed MX series industrial socket?
The MX series enclosure provides additional mechanical protection, simplified installation, and better integration with industrial equipment compared to standard surface-mounted sockets.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A IEC 60309 industrial plugs.
Is IP44 suitable for industrial equipment?
IP44 protection is suitable for indoor and light industrial environments, offering protection against solid objects and water splashes.
Why Choose CHBEB?
- Professional solutions for OEM and equipment manufacturers
- Consistent IEC 60309 standard compliance
- Reliable quality and stable production capacity
- OEM and enclosure customization available
- Dedicated support for industrial power applications
