Product Overview

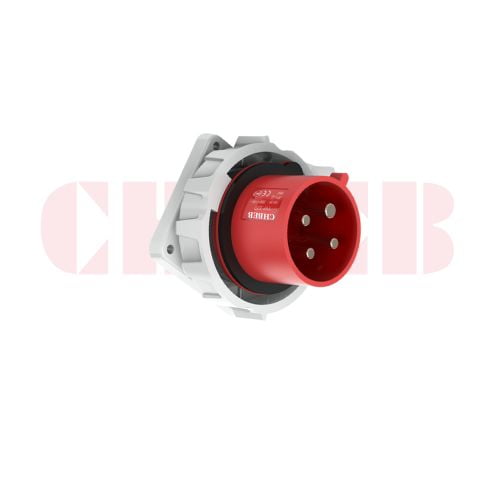

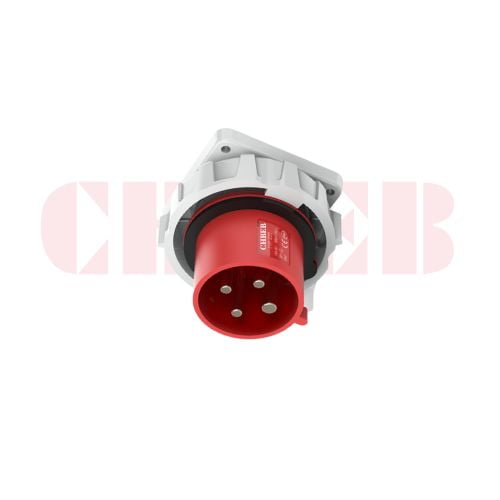

The CHBEB 16A 4-Pin Appliance Inlet is designed according to IEC 60309 standards, providing a reliable and waterproof panel-mounted power input solution for three-phase industrial equipment.
With a rated current of 16A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP67 protection, this appliance inlet ensures stable and safe power connection in wet, dusty, and harsh working environments. The red color coding and 6h clock position prevent incorrect voltage connection.
Its robust panel-mounted structure makes it ideal for fixed installation on industrial machines, control panels, and electrical enclosures.
What Is a 16A 4-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 16A 4-pin appliance inlet is an IEC 60309 standardized male connector installed on electrical equipment, designed to safely receive 400V three-phase industrial power.
It is commonly used as a fixed power input interface for industrial machinery and electrical control systems.
Key Specifications
- Rated current: 16A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-827 |
| Product Type | Appliance Inlet |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Three-phase industrial machinery
- Electrical control panels
- Industrial power distribution equipment
- Outdoor and mobile industrial devices
- Wet, dusty, and harsh industrial environments
FAQ
What does IP67 mean for appliance inlets?
IP67 provides complete dust protection and resistance to temporary water immersion, making it suitable for outdoor and wash-down environments.
Is this inlet compatible with IEC 60309 16A red plugs?
Yes. This appliance inlet is fully compatible with IEC 60309 16A 400V red industrial plugs.
Is this inlet suitable for three-phase equipment?
Yes. The 4-pin (3P+E) configuration is specifically designed for three-phase industrial power applications.
Why Choose CHBEB?
- Full IEC 60309 appliance inlet range
- Current ratings from 16A to 125A
- IP44 and IP67 protection options
- High-quality H59 brass contacts
- OEM and customization services available
