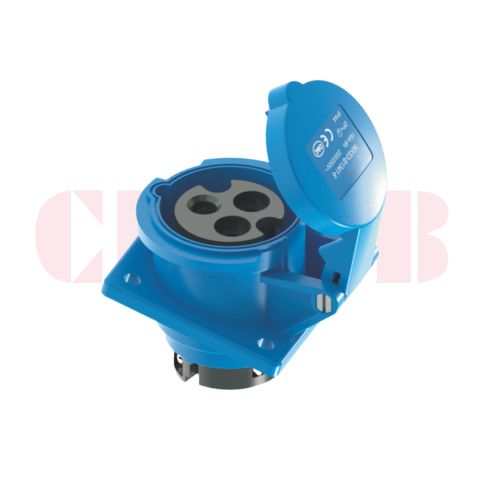

Harmony Series Panel Mount Socket 16A/3P-MXS3-B1341-6 IP44 230V is designed for single-phase power systems (L + N + Earth) and follows IEC 60309 blue voltage coding, ensuring safe and correct connections for 230V applications.
This panel-mounted socket is intended for fixed installation on equipment enclosures, control panels, and distribution boxes, providing a standardized single-phase power interface on the equipment side.
The housing is manufactured from high-strength flame-retardant PA66, offering excellent resistance to impact, heat, corrosion, and aging for long-term industrial use.
With an IP44 protection rating, the socket is protected against solid objects and water splashes, making it suitable for indoor and general industrial environments.
A hinged protective cover shields the contacts when not in use, improving safety and extending service life.
⭐ Key Features
Rated Current: 16A
Rated Voltage: 230V (IEC Blue Coding)
Poles: 3P (L + N + Earth)
Mounting Type: Panel Mount Socket
Protection Rating: IP44
Flame-retardant PA66 housing
High-conductivity copper alloy contacts
Hinged protective cover design
Compatible with Harmony Series 16A single-phase industrial plugs
⭐ Typical Applications
Single-phase industrial equipment
Control panels and distribution boxes
Construction site temporary power
Industrial lighting systems
HVAC auxiliary power interfaces
Equipment maintenance connections
