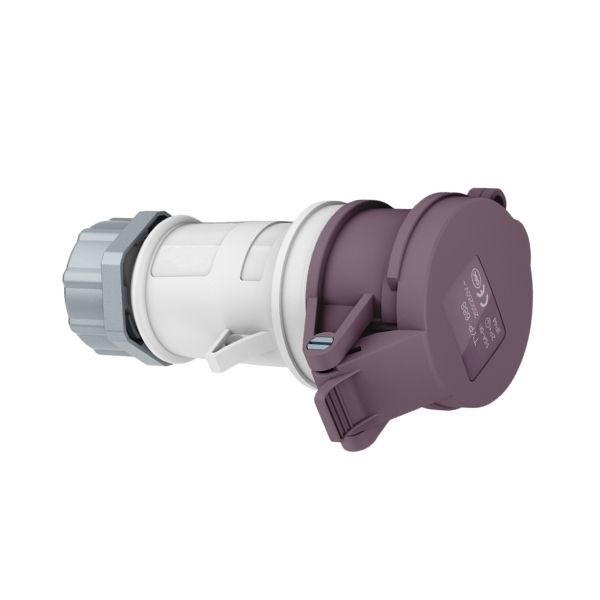

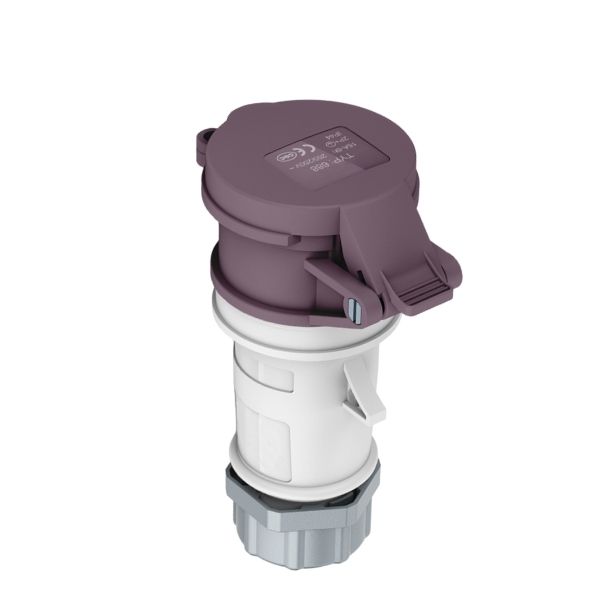

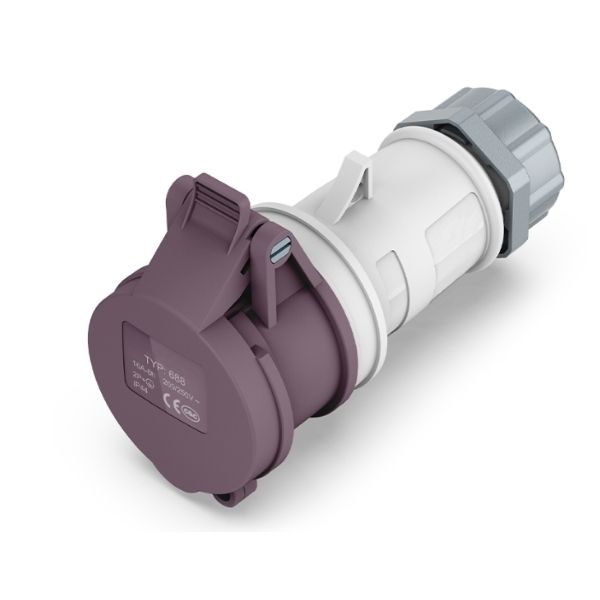

Product Overview
This 16A low voltage industrial socket connector is designed for extra-low voltage power systems operating between 20V and 25V.
Featuring a 3-pin configuration and inline female structure, it provides a secure and reliable connection for low-voltage industrial equipment and control circuits.
The IP44 protection rating offers protection against solid objects and water splashes, making it suitable for indoor and light outdoor industrial environments.
What Is a Low Voltage Industrial Socket Connector?
⭐ Google Featured Snippet Core Definition
A low voltage industrial socket connector is a female IEC 60309 inline connector designed for extra-low voltage applications, typically operating between 20V and 25V, providing safe and stable power connections for industrial control and auxiliary circuits.
Key Specifications
- Rated current: 16A
- Rated voltage: 20–25V (Low Voltage)
- Pin configuration: 3P
- Standard: IEC 60309
- Protection rating: IP44
- Clock position: 12H
- Mounting type: Inline
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-688 |
| Product Type | Low Voltage Industrial Socket Connector (Female) |
| Rated Current | 16A |
| Rated Voltage | 20–25V |
| Poles | 3P |
| Clock Position | 12H |
| Protection Rating | IP44 |
| Mounting Type | Inline |
| Pin Material | Brass H59 |
Applications
This 16A low voltage industrial socket connector is suitable for extra-low voltage applications requiring reliable and safe power connections.
- Industrial control and signaling systems
- Auxiliary low-voltage power circuits
- Automation and instrumentation equipment
- Testing, measurement, and monitoring systems
- Special-purpose low-voltage machinery
