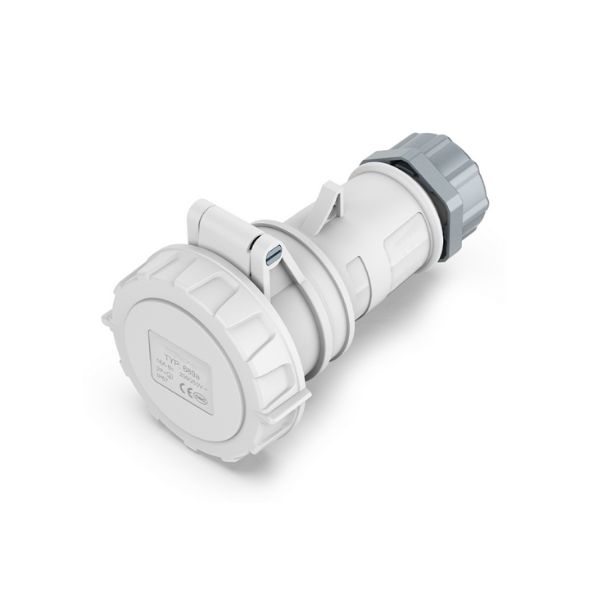

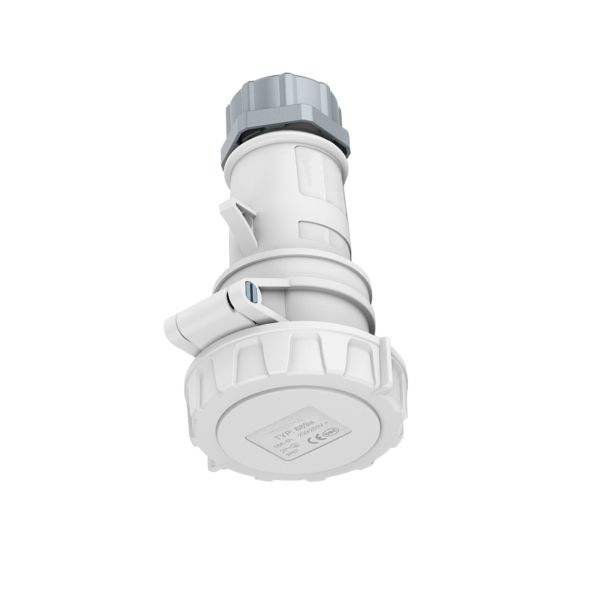

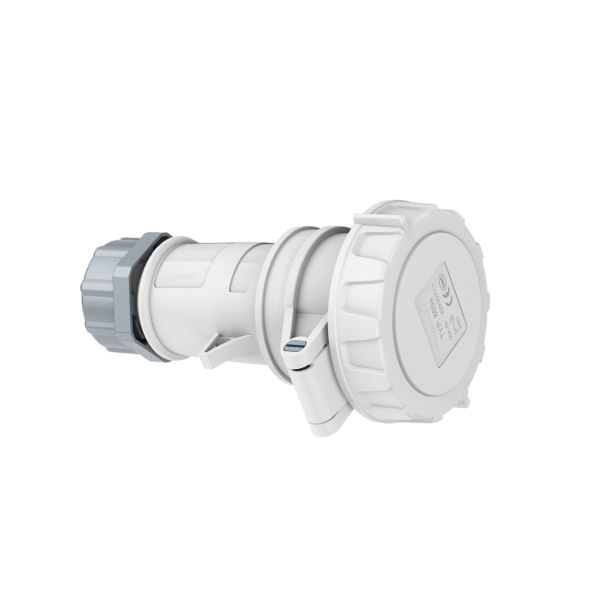

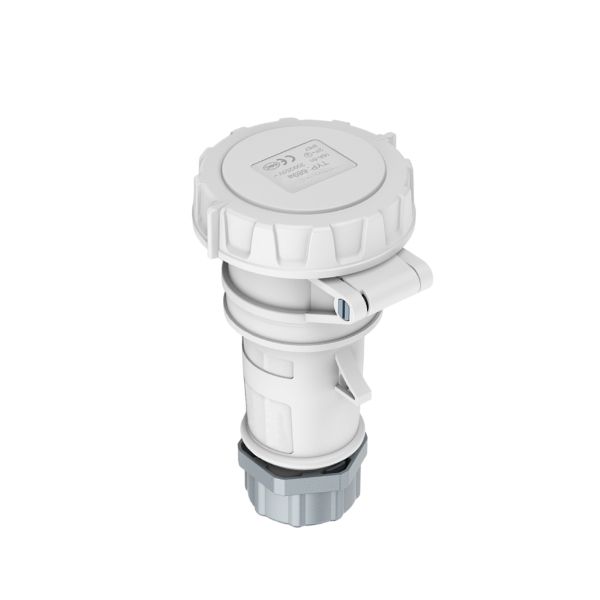

Product Overview
The 16A 3-Pin low voltage industrial connector is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for low-voltage industrial and commercial applications.
With a rated current of 16A, rated voltage range of 40–50V, IP67 protection, and a defined 12h clock position, this connector ensures correct mating, stable current transmission, and reliable protection against dust and water ingress.
The inline connector structure supports flexible cable termination and secure locking, making it suitable for portable equipment, low-voltage power distribution systems, and harsh outdoor environments.
What Is a 16A 3-Pin Low Voltage Industrial Connector?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin low voltage industrial connector is a standardized IEC 60309 power connector designed to supply 40–50V industrial electricity for low-voltage power and control applications.
Its inline construction allows easy cable assembly and secure electrical connections, making it ideal for portable machinery, auxiliary power systems, and industrial low-voltage distribution.
Key Specifications
- Rated Current: 16A
- Poles: 3P
- Rated Voltage: 40–50V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 12h
- Mounting Type: Inline (Portable)
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 16A |
| Number of Poles | 3P |
| Rated Voltage | 40–50V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 12h |
| Mounting Type | Inline / Portable |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- Low-voltage industrial power systems
- Auxiliary and control power connections
- Portable low-voltage equipment
- Outdoor low-voltage power distribution
- Maintenance and service operations
