16A 3P IEC 60309 Industrial Socket Connector, 230V, IP67, Inline Female

16A 3P IEC 60309 Industrial Socket Connector, 230V, IP67, Inline Female

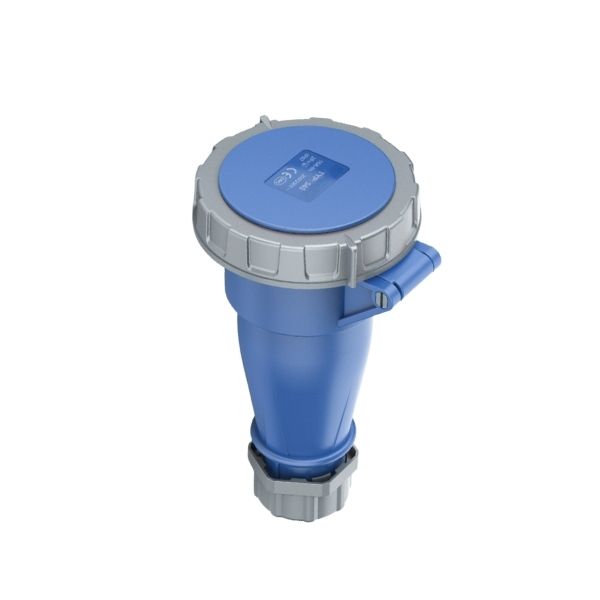

IP67 • 220-240V • 2P+E • 16A 3P IEC 60309 Inline Socket Connector 230V IP67

Technical Specifications

Model: TYP-540
Series: Linghang
Short Name: 16A 3P IEC 60309 Inline Socket Connector 230V IP67
Rated Voltage: 220-240V
Poles: 2P+E
Protection IP: IP67
Hour Position: 6h
Color: Blue
Mounting Type: Inline
Gender: Socket (Female)
Housing Material: PA6
Conductor Material: Brass

Order Information

MOQ 600 Units

Lead Time Est. 8-9 days

Packaging

Standard Carton Color Box Pallet

Factory Direct

IEC 60309 Certified

Product Details

Product Introduction

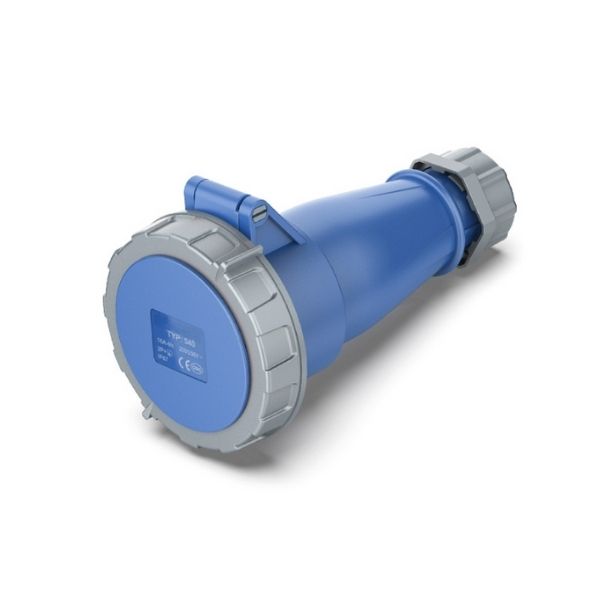

The TYP-540 is a 16A 3-pole IEC 60309 inline female industrial connector designed for 230V power distribution in demanding environments. Featuring an IP67 waterproof rating and a robust locking structure, it ensures secure and reliable electrical connections for portable and mobile industrial equipment.

Product Overview

A 16A 3P IEC 60309 inline connector is a standardized industrial power connector designed to provide safe 230V electrical connections for portable equipment. With a 2P+E pin configuration and IP67 protection, it ensures reliable performance in wet, dusty, and harsh industrial environments.

Key Specifications

Rated Current: 16A
Poles: 3P (2P + Earth)
Rated Voltage: 230V
Frequency Position: 6H
Protection Rating: IP67
Connector Type: Inline Female Connector
Mounting Type: Inline / Portable
Standard: IEC 60309 (CEE)

Technical Parameters

Model	TYP-540
Rated Current	16A
Poles	3P (2P + E)
Rated Voltage	230V
Protection Rating	IP67
Frequency Position	6H
Mounting Type	Inline / Portable
Contact Material	Brass (H59)

Applications

Portable industrial equipment and tools
Construction sites and temporary power distribution
Generators and mobile power units
Workshops and factory machinery
Outdoor electrical systems requiring waterproof connectors

Factory Production & Quality Control

See our real production processes and rigorous quality inspection procedures. From raw materials to finished products, every step follows strict industrial standards.

Production Process

Watch our complete manufacturing workflow from injection molding to final assembly. Advanced automation ensures consistent quality and efficiency.

IEC Standard Quality Control

Quality Inspection

Our comprehensive testing procedures include electrical safety, mechanical durability, and environmental resistance tests before shipment.

IP67 Testing CE Certified

Transparent Manufacturing Process • B2B Factory Tours Available

Quality Testing Lab

Quality Assurance

Every connector undergoes mechanical endurance tests, contact resistance tests, dielectric withstand tests, and waterproof verification. Certified by IEC 60309 and manufactured under ISO systems.

IEC 60309

International Standard

ISO 9001

Quality Management

IP44/ IP67

Protection Rating

100%

Electrical Safety Test

Internal Structure & Engineering Details

Designed for durability, safety, and long-term industrial use

Anti-Loosening Lock and IP67 Sealing Design

IP67 Rated

🔧

Anti-Loosening Lock & IP67 Sealing Design

The connector features a reinforced anti-loosening locking mechanism combined with a waterproof sealing ring. When fully tightened, it ensures a secure connection and achieves up to IP67 protection, preventing accidental disconnection and water ingress in harsh environments.

🔩

Solid Brass Contacts with Nickel Plating

High-conductivity solid brass pins with nickel plating provide excellent electrical performance, corrosion resistance, and long service life. This design reduces contact resistance and minimizes heat buildup under continuous load.

Nickel Plated

Clear Wiring Structure for Fast Installation

16A Models

1-4 mm² cables

32A Models

2.5-6 mm² cables

🔌

Clear Wiring Structure for Fast & Safe Installation

The internal terminal layout allows quick and accurate wiring. Screw-clamp terminals ensure strong cable fixation and reliable electrical contact.

16A models support 1-4 mm² cables

32A models support 2.5-6 mm² cables

🧭

Guided Slot Design to Prevent Wrong Insertion

The socket is designed with a precise guiding slot system, perfectly matching the plug's orientation. This prevents incorrect insertion and ensures safe, correct phase alignment every time.

Safety First

High-Strength Nylon Housing and Rubber Gasket

Industrial Grade

🧱

High-Strength Nylon Housing & Rubber Gasket

The housing is made from premium industrial-grade nylon, offering excellent impact resistance, flame retardancy, and durability. An integrated rubber sealing gasket improves waterproof performance and ensures a tight, stable installation on panels or enclosures.
