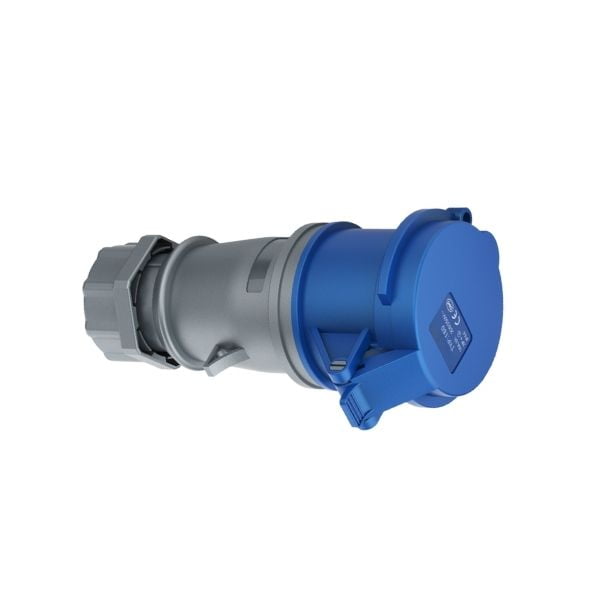

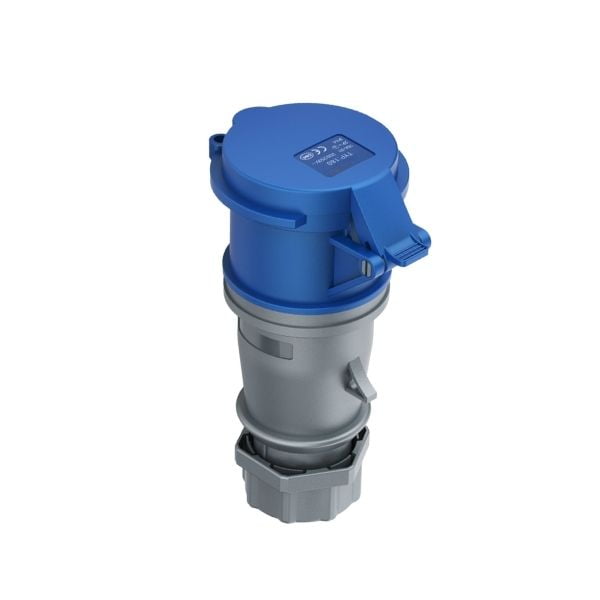

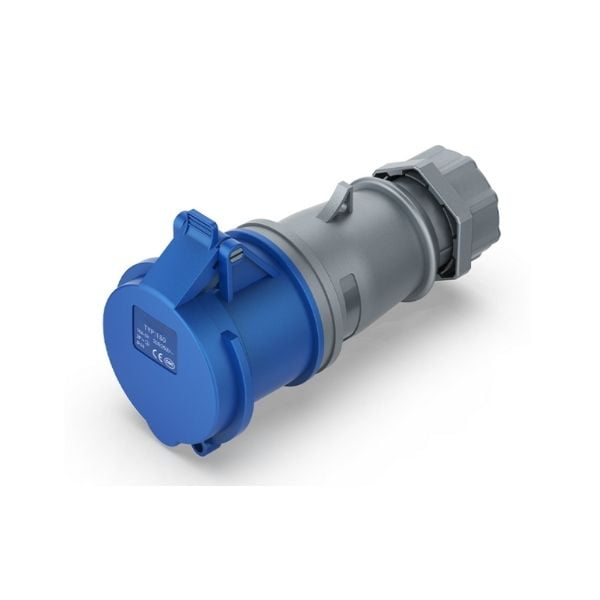

Product Overview
This 16A IEC 60309 industrial socket connector is designed for reliable power connections in single-phase and three-pole industrial electrical systems.
With a rated voltage of 230V and a 3-pin (2P+E) configuration, it is commonly used to connect industrial plugs to power cables or extension cords.
The IP44 protection rating ensures safe operation against solid objects and water splashes, making it suitable for indoor and light outdoor industrial environments.
What Is a 16A Industrial Socket Connector?
⭐ Google Featured Snippet Core Definition
A 16A industrial socket connector is a female IEC 60309 coupling device used to connect industrial plugs to power cables, providing safe current transmission and stable electrical connections in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3P (2P+E)
- Standard: IEC 60309
- Protection rating: IP44
- Clock position: 6H
- Mounting type: Inline
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-180 |
| Product Type | Industrial Socket Connector (Female) |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Mounting Type | Inline |
| Pin Material | Brass H59 |
Applications
This 16A 3-pin 230V industrial socket connector is widely used in light industrial and commercial power distribution systems.
- Industrial extension cables
- Workshops and factory equipment
- Portable power tools
- Temporary power connections
- Maintenance and service power supply
